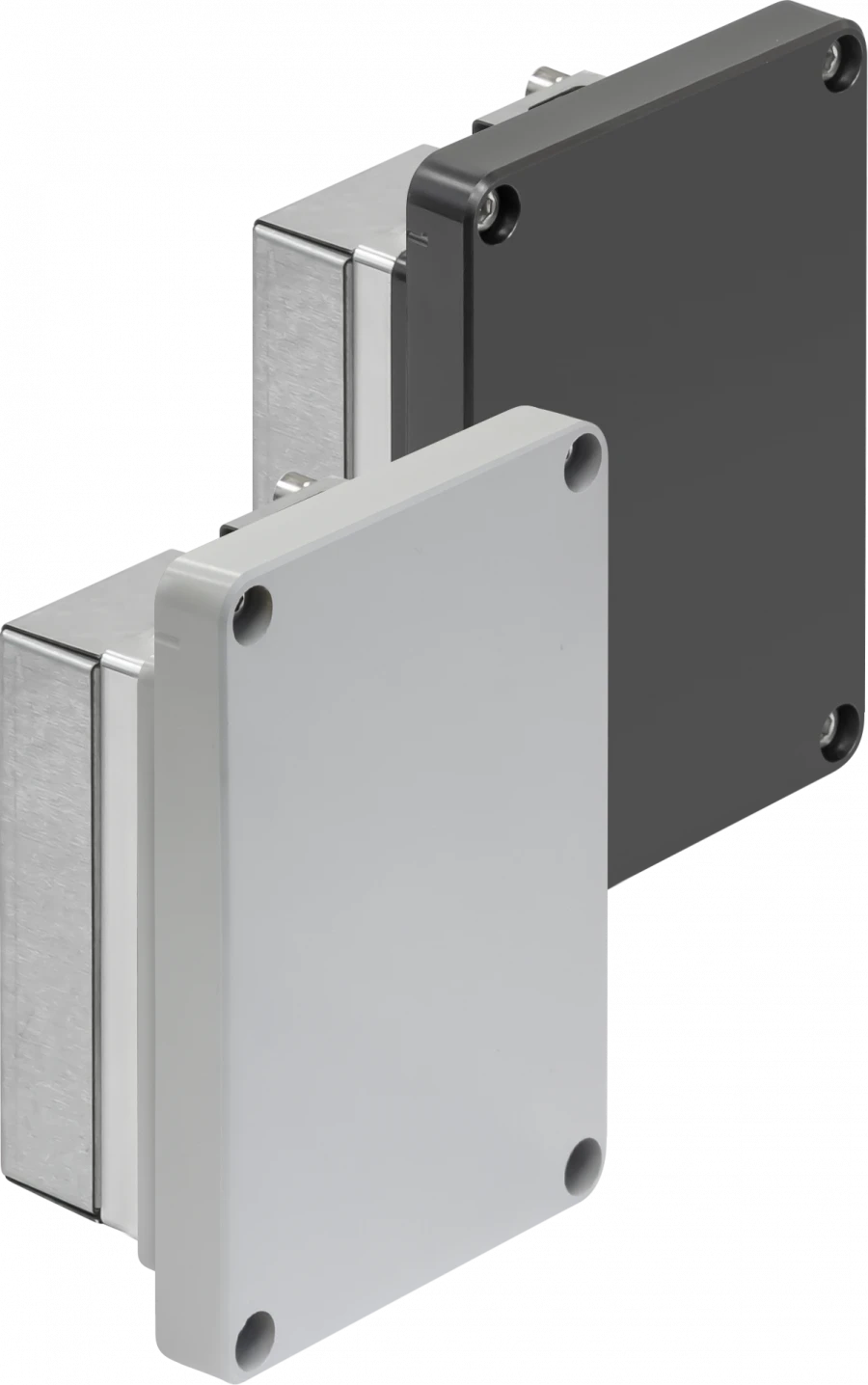

Meters of vehicle movement parameters "RAPIRA-M" BKYUF.201219.050-13

Radar Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Meters of vehicle movement parameters "RAPIRA-M" BKYUF.201219.050 Meters of vehicle movement parameters "RAPIRA-M" BKYUF.201219.050-01 Meters of vehicle movement parameters "RAPIRA-M" BKYUF.201219.050-23

Description

Measuring parameters of vehicle movement "RAPIRA-M" is designed for:
-measurement of the speed of vehicles (hereinafter referred to as "TC") in the control zone;
- measurement of vehicle location in the IP control zone;
- measurement of time synchronised with UTC(SU) time scale, corresponding to the moment of measuring the speed and location of the vehicle;
- measurement of coordinates of the UUT location;
- measurement of the course and own speed of the UE in case of mobile positioning;
- classification of TCs by length;
- calculation of the number of vehicles that passed the control zone during the time interval.

Specifications

Operating frequency of IP radiation, GHz 24.15±0,1

Number of TC classifications by length, not less than 3 pc

Rated DC supply voltage B1/B8 2100/900 MHz V

DC supply operating voltage range 8...18 V

Consumption power at rated supply voltage, not more than 8 W

Consumption power at rated supply voltage with radar module power supply switched off, not more 4 W

Ambient air temperature -50...80 °C

Permissible relative humidity at 25°C 98 %

Atmospheric pressure 60...106.7

Degree of protection IP 40

Weight, not more 0.4 kg

Overall dimensions (L*W*H), not more, mm 115*85*55

Measurement range of vehicle speed 1...350

Measuring range of distance from the UUT to the vehicle, m 5...150

Measuring range of angles on TC in horizontal plane, ?º -10...10

Measuring range of angles on TC in vertical plane, Cº -20...20

Tolerance limits of absolute error of angle measurements on TC, ?º ±1

Limits of permissible absolute error of measurement of distance from UUT to TC, m ±1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
