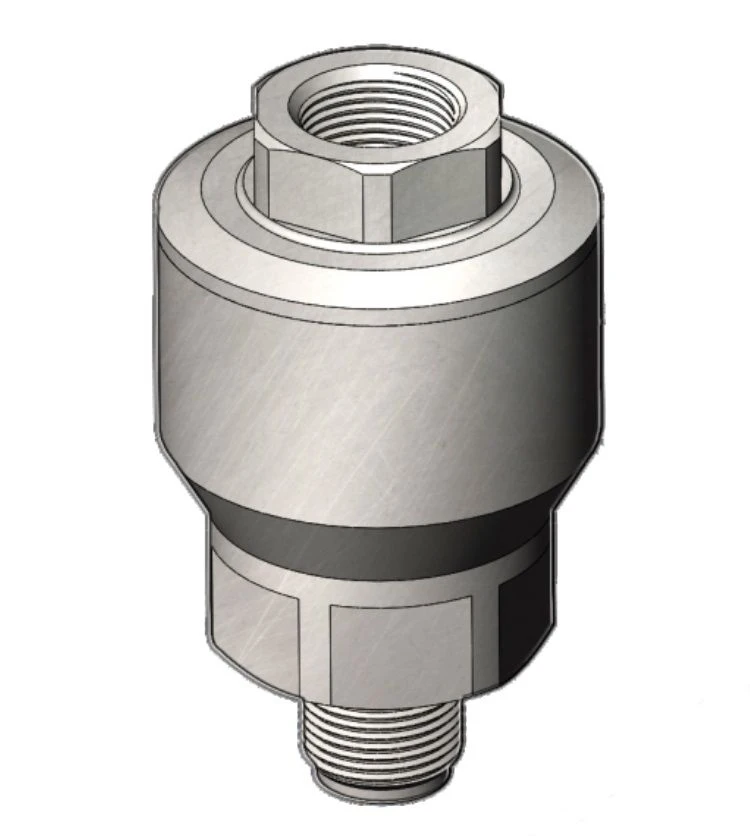

Medium Separator Type VN for Pressure Measurement Instruments

Available for Import

Medium Separator Type VN for Protecting Pressure Measurement Instruments

Instrument Component Parts

Manufacturer: ENERGO-PROM-RUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed to protect the sensitive element of the measuring device (manometer, sensor, regulator, etc.) from aggressive, highly viscous, contaminated, solidifying, polymerising working media and/or media with high temperature. Possible to operate at pressures up to 600 kgf/cm2 or up to 1500 kgf/cm2. Collapsible design with internally located and replaceable separating element. Can be filled with liquid both with vacuum and without vacuum equipment. Do not require additional adjustment or fine-tuning during commissioning.

Specifications

Operating temperature range, ??

-50…+250

Operating media

Non-viscous, viscous, edible, corrosive. Dirty or solidifying moderately aggressive. Solidifying hydrocarbons (fuel oil, etc.). Any mildly aggressive media. Aggressive media

Working pressure range, kg/cm²

0-600kg/cm2 to 1500kg/cm2

Internal volume, cm³

3.7...18
