Mechanical tachometer hot water meter ITELMA WFW 23.D110 IP68

Flow Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

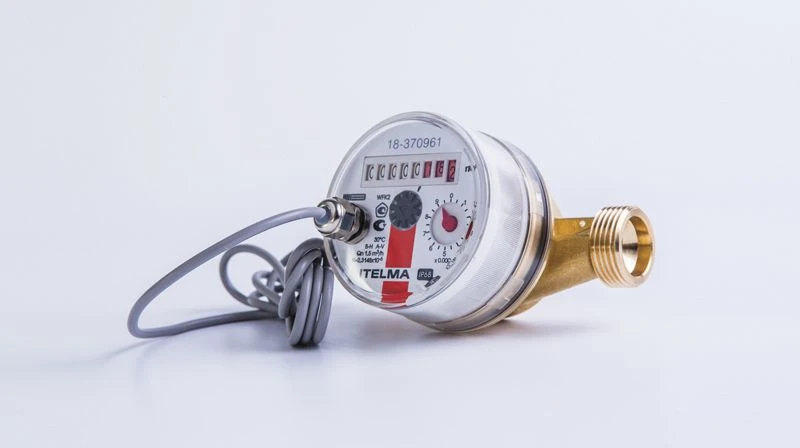

Mechanical tachometric hot water meter ITELMA WFW 23.D110 IP68. Protection class of the housing against dust and moisture IP68. Visual reading, wired interface, standard Namur, Du=15mm, L=110mm, Qnom=1,5m3/h, DHW. Manufactured in Russia by German technology from high quality raw materials. Resistant to increased pressure in the water supply system up to 25 Atm. Resistant to elevated water temperature up to 110 degrees Celsius. Warranty 6 years

Specifications

Mark ITELMA

Application Designed to measure the volume of drinking water (according to SanPin 2.1.4.1074-01)

Working pressure 1 MPa

Nominal bore diameter 15 mm

Temperature range +5 to + 90 °C

Threaded connection 3/4

Service life B1/B8 2100/900 MHz a

Inspection interval 6 a

Warranty 72
