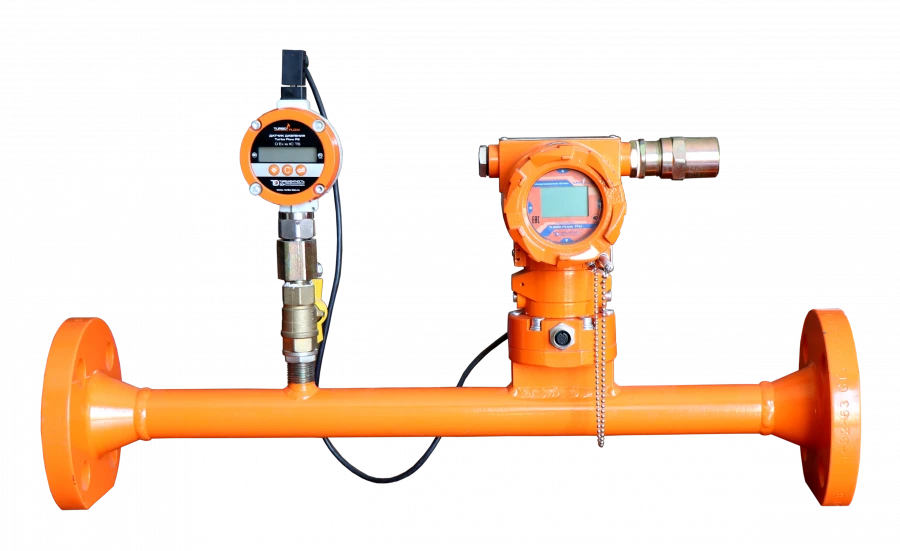

Turbo Flow TFG thermoanemometric flowmeters

Flow meters are designed to measure the mass flow rate of gas and volume flow rate of gas reduced to standard conditions (natural, free (associated) oil and other gases and mixtures of gases of known composition, including those with aggressive components) and calculate the mass and volume of gas reduced to standard conditions. Flowmeters consist of one or several flow converters (hereinafter - FC) and a flowmeter cabinet. For remote reading of information the flowmeter can be equipped with a remote terminal. The terminal is connected with the sensor via RS-485 wired interface. Depending on the design of PP and diameter of the measuring pipeline (hereinafter - IT) the flowmeters have the following modifications: H - for installation in IT DN 25-100; S - for installation in IT DN 50-1400. Depending on the pressure in the IT the flowmeters have versions A, B, C, D, E - from 16 MPa to 32 MPa. The flowmeters have measuring ranges: from -60 to +70 C, from -60 to +300 C.
