Available for Import

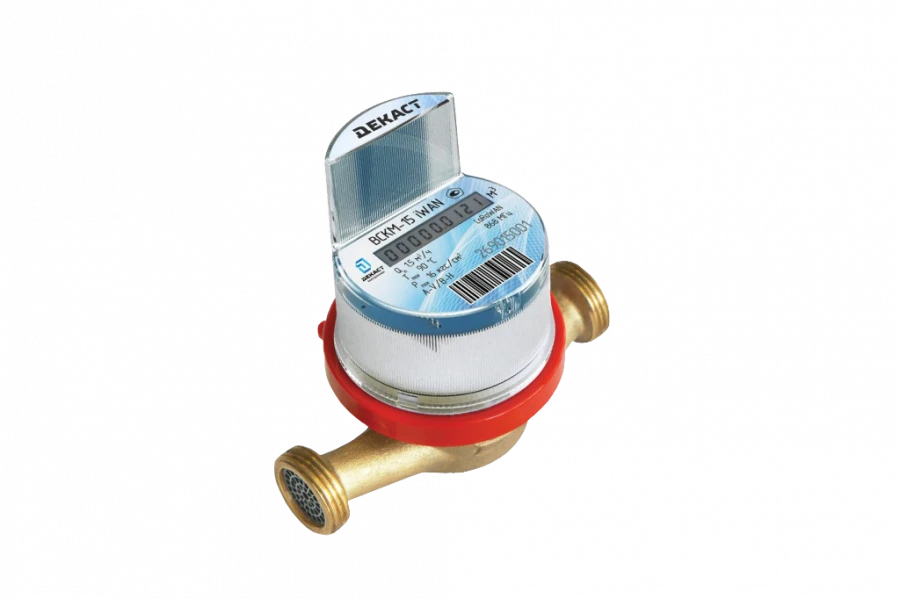

Cold and hot water meter Decast VSCM-15 iWAN

Flow Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Cold and hot water meter Dekast VSCM-15 iWAN NB-IoT

Description

Cold and hot water meter electronic single-jet impeller with readings transmission via LoRaWAN radio protocol.

Electronic display for easy reading.
Possibility to build flow profiles.
External magnetic detection.
Water volume calculation in forward and reverse flow.
Emergency reporting of abnormal situations (leakage, burst mains, magnetic influence, freezing).
ADR (Adaptive Data Rate) support.
Activation method OTAA, ABP (customisable).
Transmitter power 25 mW.
Verification according to MI 1592.
Verification interval 6 years.
Warranty 6 years.

Minimum water flow qmin - 0.03 m3/h.
Transient water flow qt - 0.12 m3/h.
Nominal (operating) water flow qn - 1.5 m3/h.
Maximum water flow qmax - 3.0 m3/h.

Maximum water pressure - 1.6 MPa.
Water temperature range - 5-95 ° C.
Mounting length - 110 mm.

Specifications

Transmitter power 25

Data transfer protocol LoraWAN

Verification procedure MI 1592-2015

Inspection interval 6 a

Maximum temperature 95 °C

Maximum working pressure, Pmax 1.6 MPa

Mounting length, L 110 mm

Minimum flow rate, Qmin 0.03 mm

Transient flow rate, Qt 0.12

Nominal flow rate, Qn 1.5

Diameter of nominal passage, DN 15 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
