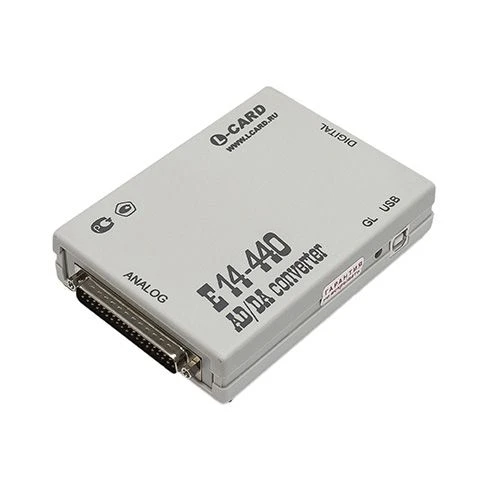

Measuring voltage converter L-CARD modification E14-440
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Designed for measuring DC and AC voltage, as well as for input, output and processing of analogue and digital information in measuring devices and systems based on personal computers. Approved as measuring instrument type No. 70108-17
Specifications
Power consumption
2.5 W
Average service life
10 a
MTBF
20000
Weight
0.2 kg
Overall dimensions
140x96x30 mm
DC supply voltage
5 V
Number of digital outputs
16 pc
Number of digital inputs
16 pc
DC input electrical resistance
10 megohms
In-phase noise reduction factor
70
Tolerance limits of relative basic error of ADC conversion frequency
±0,005 %
Tolerance limits of the reduced basic error of DC voltage reproductions
-0.3...0.3 %
DC voltage reproduction range
-5...5 V
Tolerance limits of relative basic error of AC voltage measurements
from ±0.15 %
Frequency range of AC voltage
0.02...199
AC voltage measurement range
0.0002...7 V
Tolerance limits of the reduced basic error of DC voltage measurements
from ±0.05 %
DC voltage measurement range
-10...10 V
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
