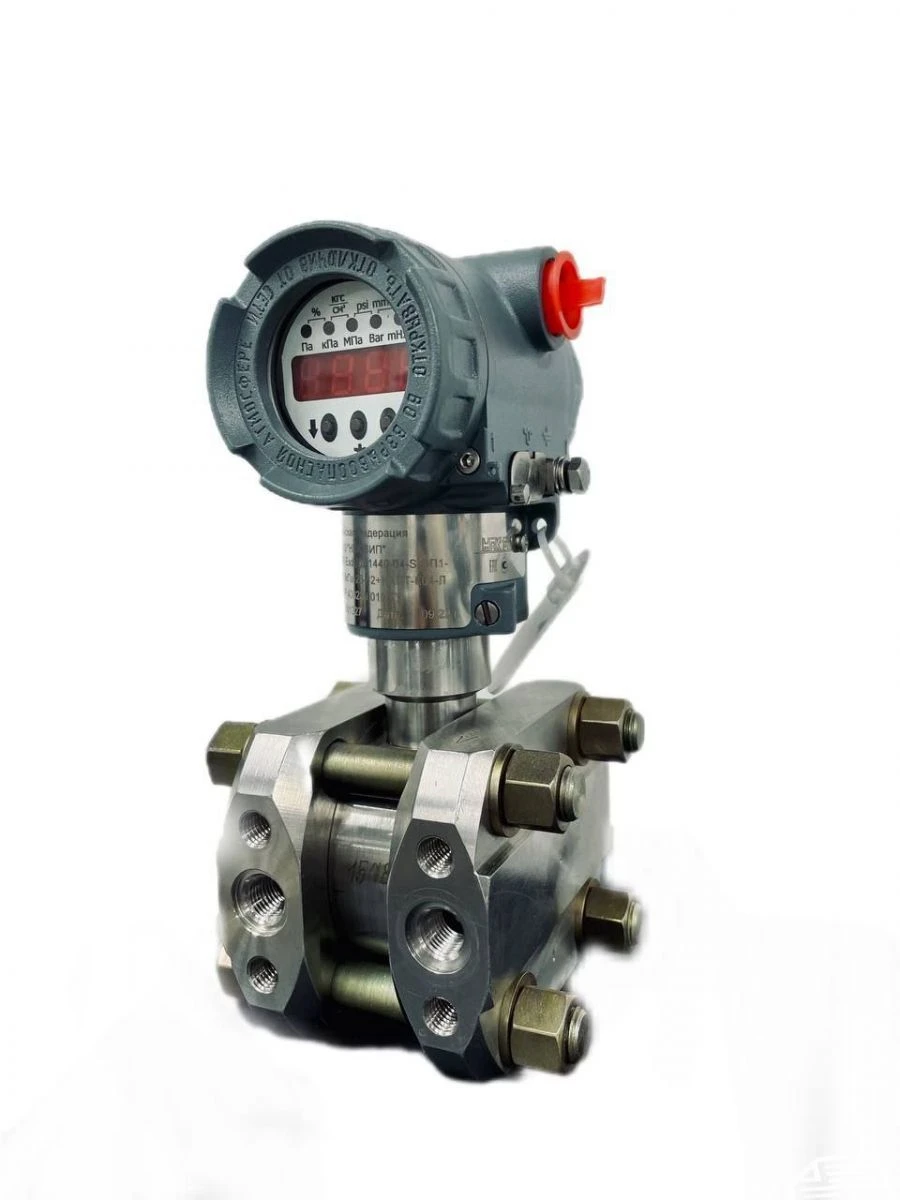

Measuring pressure transmitters SDV-SMART-DD design version S

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Measuring pressure transmitters SDV-SMART-B design version S Measuring pressure transmitters SDV-SMART-IV design S

Description

Converters are designed for continuous measurement and conversion of pressure difference of neutral and aggressive, gaseous and liquid working media into unified current output signal 420 mA, DC voltage 0,8-3,2 V and digital signal.

Specifications

Average service life 14 a

Average MTBF 157000

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

DC supply voltage 14...42 V

DC supply voltage 18.5...42 V

DC supply voltage 14...24 V

DC supply voltage 18.5...24 V

DC supply voltage 24 V

Power consumption 1

Power consumption 0.8

Weight 5...12 kg

Overall dimensions 260 mm

Ambient air temperature -61...70 °C

Relative humidity 100 %

Interference emission standard class B

Vibration resistance L3, V1, V2

Dustproof IP54, IP66, IP67

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
