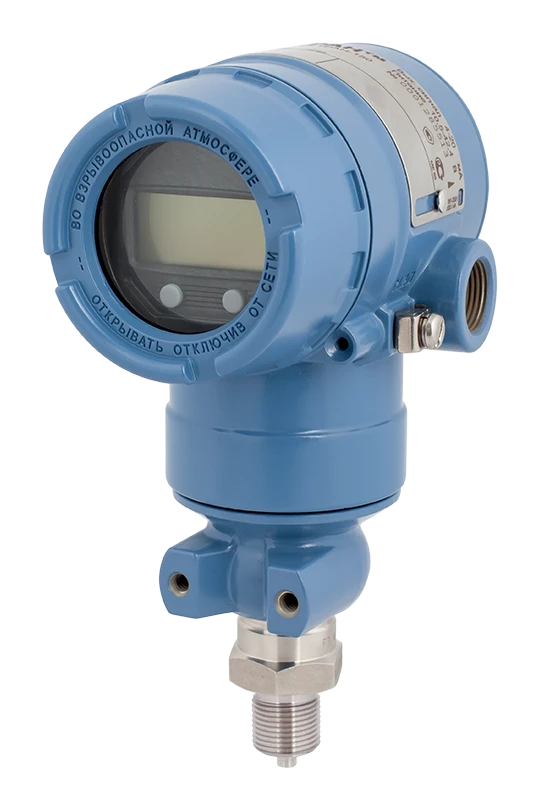

Metran-150 pressure sensors (model 150TGR, version according to TU)

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for measuring overpressure of liquid, steam and gas. The measuring mechanism of sensors works on the principle of strain-resistive effect. The sensors can be connected to the process by means of socket or flange mounting. The design of the sensors allows the sensors to be used with valve assemblies of various designs

Specifications

Execution General industrial, intrinsically safe, explosion-proof, combined

Dustproof IP66, IP68

Output signal Analog DC output signal 4-20 (0-5) mA and/or into digital output signal in NART protocol standard

Warranty period warranty storage period - 24 months from the date of sensor manufacturing. Warranty period of operation - 36 months from the date of their commissioning. Option WR5: warranty period of operation of the sensor - 5 years from the date of their commissioning

Overpressure (DI), WFI 68.947 MPa

Overpressure-dissipation (ODP), WFI -0.1...68.947 MPa

Range reconfiguration depth 1:100; 1:50

Basic reduced error 0.075; 0.1 (optional: 0.2; 0.5; 0.065) %

Climatic designs -40...85 °C

EMC IV version group according to GOST 32137; GOST R IEC 61326-1

Inspection interval 5 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
