Available for Import

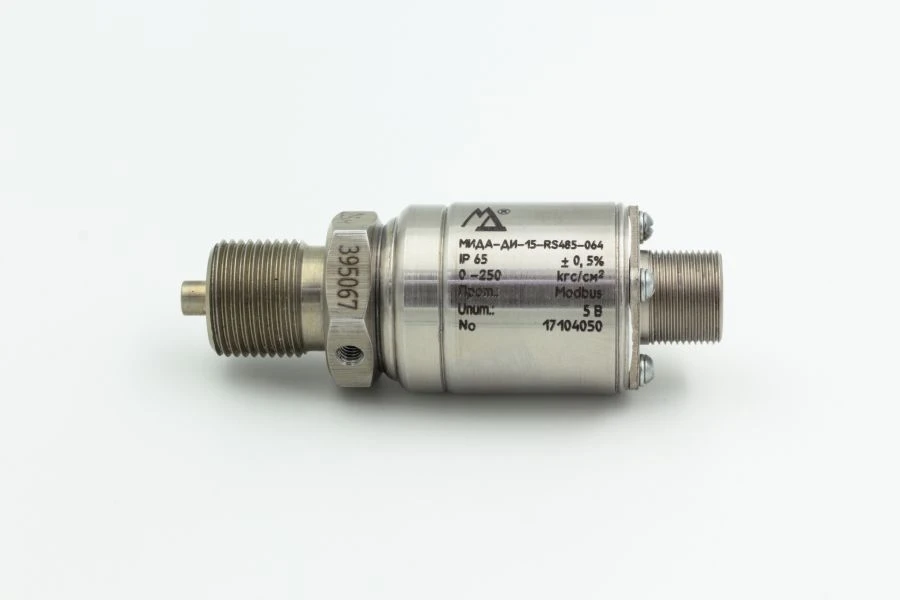

MIDA-15 pressure sensors

Pressure Measuring Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The MIDA-15 pressure transducers are designed for continuous measurement and proportional conversion of gauge pressure (DP), absolute pressure (AP), vacuum pressure (VP), gauge pressure - vacuum (LP) and pressure difference (PD) of liquids and gases into a current output signal, signal in the form of DC voltage or digital code (digital signal) interface UART with a special exchange protocol Mida, or digital code interface RS-485 with an exchange protocol based on the Modbus protocol or with the exchange protocol Mida in systems for monitoring and control of pressure, including explosive industries.

Specifications

Inspection interval 5 a

Climatic designs UHL**3.1; U**2

Basic reduced error 0.05 %

Range reconfiguration depth 1:10

Hydrostatic pressure (HP), upper measuring limit 1600

Differential pressure (DP), upper measuring limit 0.001...0.16 MPa

Overpressure-dissipation (OPD), upper measuring limit 0.002...2.4 MPa

Overpressure (OD), upper limit of measurement 0.001...250 MPa

Absolute pressure (YES), upper measuring limit 0.004...10 MPa

Warranty period 4 a

Output signal, mA 4...20

Dustproof IP65; IP68

Execution General industrial and explosion-proof

Output signal, V 0.4...2 V

Output signal is digital UART/Mida, RS-485/Modbus

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
