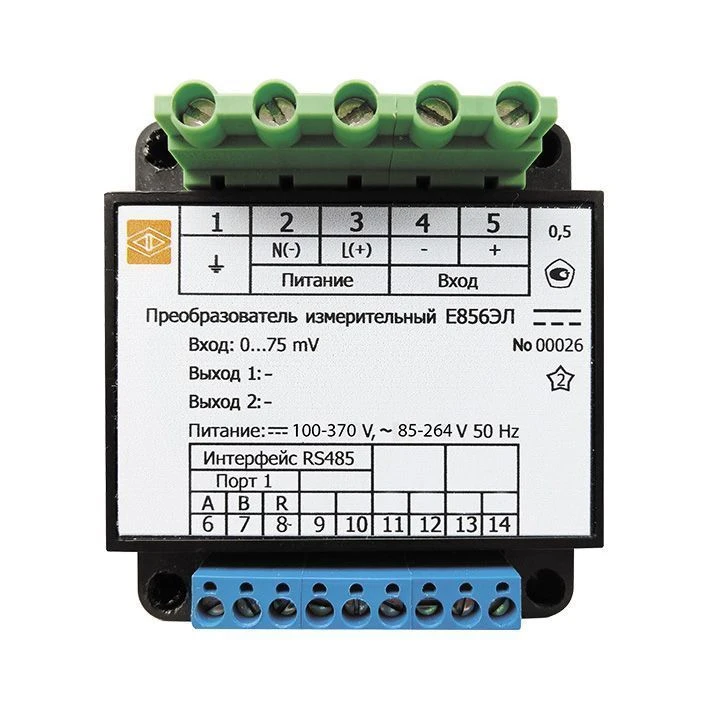

Measuring converter of direct current and voltage, alternating current and voltage: version E856EL

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The E856EL converter is designed to measure current and voltage in DC circuits of electrical systems, installations and automation of various objects of power engineering, defence, security and industry. The possibility of information exchange via RS485 interface (Modbus RTU protocol) allows to use E856EL for transferring information in digital code to ACS. The converter can have a version without RS485 interface. E856EL is included in the State Register of SI of the Russian Federation No. 68159-17. Interverification interval is 10 years.

Specifications

Time of output signal establishment, not more than 0.5 sec.

Input signal 0...5 mA, 4...20 mA, 0...20 mA, -5...0...5 mA; 0...75 mV, -75...0...75 mV; 0...60 V, 0...100 V, 0...150 V, 0...250 V, 0...500 V, 0...1000 V

Weight, kg, not more 0,4 (with RS485), 0,5 (without RS485)

Overall dimensions, mm 70x85,5x89 (with RS485), 70x86x80 (without RS485)

Average MTBF 200000 ?

Average service life, at least 20 years

Warranty period of operation 2 years

Inspection interval 10 years

Performances General industrial; for operation at nuclear power plants (safety class - 4 according to NP-001-2015); for operation at sea vessels (OM2)

Mounting DIN rail 35 mm

Degree of protection IP50

Operating temperature range -40 to +50 °C (95% relative humidity at +35 °C); -40 to +55 °C (95% relative humidity at +25 °C) - for devices with "Sea Register" acceptance

Power consumption from the power supply circuit, not more 1 W from input signal circuit (for parallel circuit); 0.01 W from input signal circuit (for series circuit); 6 V-A from power supply circuit

Power supply voltage 12VH - (12+6/-3) VDC; 24VH - (24+12/-6) VDC; 230V - 85 to 264 VAC 50 Hz; 220VU - 85 to 264 VAC 50 Hz or 100 to 370 VDC.

Analog outputs Quantity: 0, 1, 2; ranges: 0...5 mA, 0...20 mA, 4...20 mA, 0...2.5...5 mA, -5...0...+5 mA, 4...12...20 mA, 0...10...20 mA

RS485 communication interface Quantity: 0, 1, 2; Modbus RTU protocol

Galvanic isolation of input and output circuits Got it

Basic error ± 0,5 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
