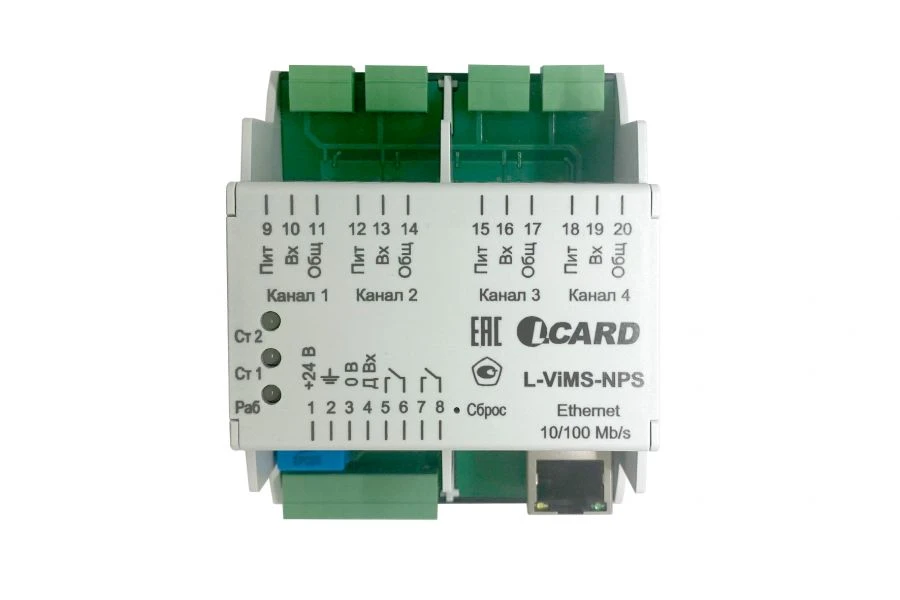

L-ViMS-NPS measurement module

Electrical Measurement Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

L-ViMS-NPS-1 measuring module

Description

The modules are designed for measuring DC voltage and AC voltage in the presence of a constant component of negative polarity in four measurement channels, as well as control of electrical circuits in two switching channels by means of electronic keys, in addition, the modules have one discrete input designed to connect external devices.
They are part of the L-ViMS vibration control measuring system.

Specifications

DC voltage measurement range -0,1 to -20,0 V

Limits of permissible reduced error of DC voltage measurements ±0,2 %

Measurement range of RMS value of AC voltage 0.001 to 5 V

Frequency range 10 to 10000

Tolerance limits of relative error of measurements of RMS value of AC voltage from ±0.3 %

Number of measuring channels 4 pc

Number of switching channels 2 pc

Number of digital inputs 1 pc

Number of Ethernet interface ports 1 pc

Dimensional characteristics 75x65x100 mm

Weight 0,2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
