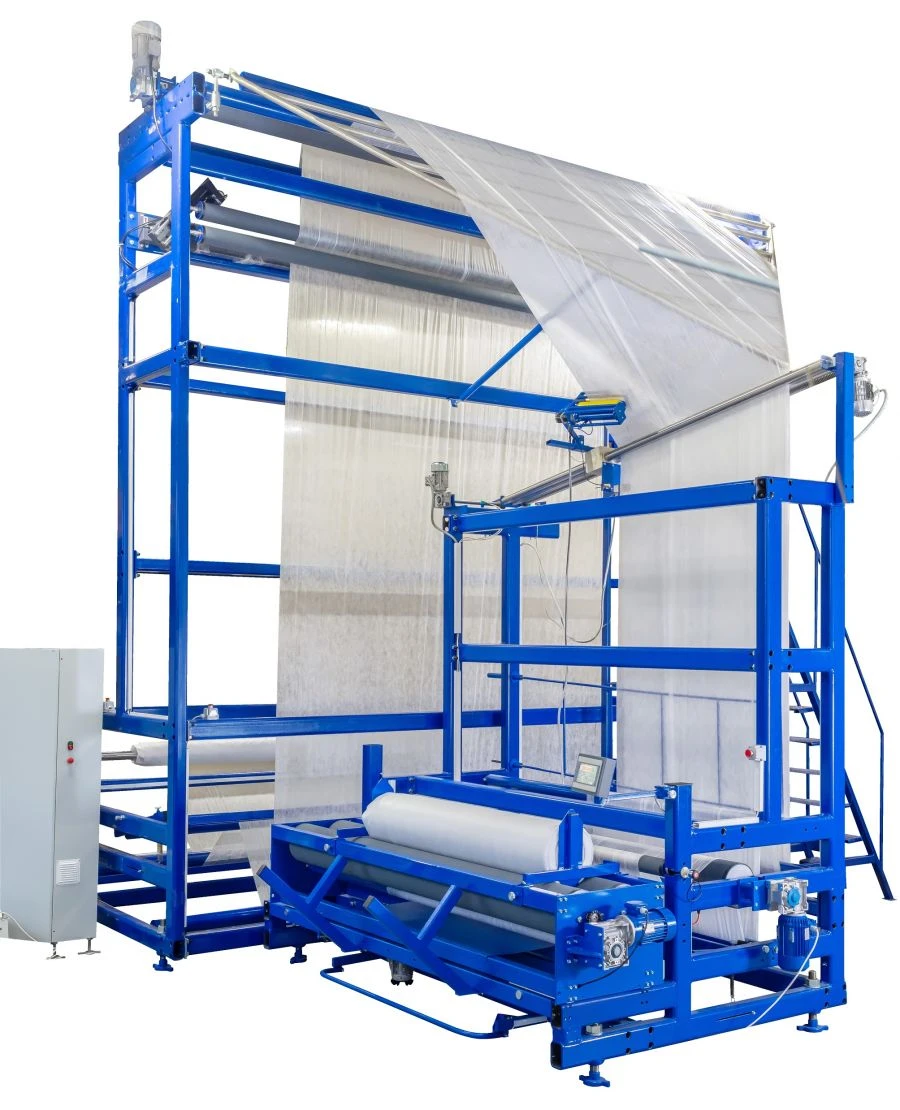

Measuring and Winding Machine Model C02.2 for Nonwoven Materials Application

Textile Processing Equipment

Manufacturer: ROLLTEX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Merilno-double machine model C02.2 is designed for doubling of material with its subsequent winding into a cylindrical roll on a cardboard bobbin and measuring the length. The machine provides work with rolls of materials weighing up to 1200 kg and with diameter up to 1500 mm. It is available in bale widths up to 4200 mm. The machine is mainly supplied to factories producing nonwovens (spunbond, geotextiles).

Specifications

Mark

Rolltex

Maximum bale diameter at inlet

1500 mm

Maximum bale weight at the inlet

1200 kg

Maximum output bale diameter

600 mm

Maximum output bale weight

100 kg

Edge alignment unit

As standard. fabric guides.

Rewinding scheme

From a cylindrical bale wound on a cardboard bobbin into a bale of material doubled on a cardboard bobbin with an outer diameter of at least 40 mm.

Rewind speed

0-120 mpm

Maximum bale width at the inlet

4200 mm

Maximum output bale width

2100 mm
