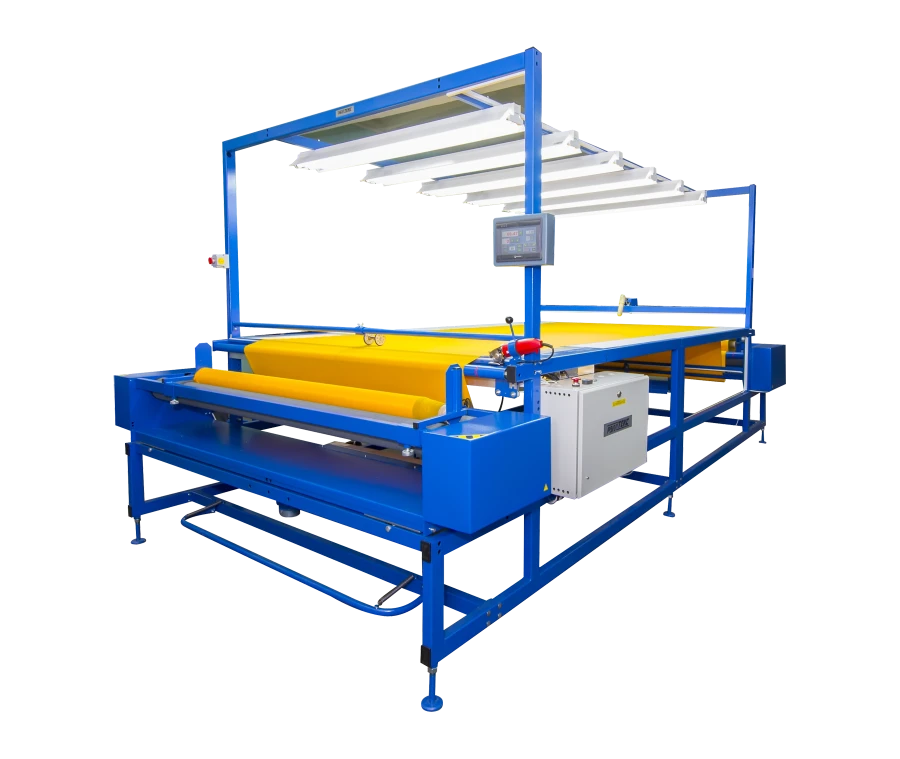

Measuring and Defect Detection Machine B01.3 for Materials

Available for Import

Advanced Measuring Machine for Quality Assurance

Textile Processing Equipment

Manufacturer: ROLLTEX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Prometrochny table B01.3 is a multifunctional complex that combines the functions of a 3-metre measuring table and measuring and bagging machine. The machine works with bales weighing up to 60kg and with a diameter of up to 400mm. It is available in bale widths from 1800 mm / up to 2000 mm / up to 2500 / up to 3200 mm / up to 3500 mm. The machine is equipped as standard with an automatic material stretch tracking system, electronic programmable metre counter, forward and reverse stroke with twisting into a bale, viewing screen with LED backlight, bale end sensor, etc. The machine is additionally equipped with a device for static removal, bale density adjustment, manual or automatic cut-off knife, Astra software for accounting of dismantled bales, backlight width adjustment, additional tear sensor.

Specifications

Mark

Rolltex

Rewind speed

Rewind speed is infinitely variable from 0 to 50 m/min.

Passport, operating and maintenance instructions

supplied with equipment

Marker

The marker allows automatic chalk marking of the material according to a preset metre, e.g. after reaching 3.

3-meter longitudinal ruler

required for visual measurement of bale length when machine stops

Ruler for visual measurement of fabric widths

required for visual measurement of bale width when machine is stopped.

Additional overhead lighting for the entire 3-meter work surface of the table

The optional overhead lighting allows specific types of defects such as variation in shade and non-colouring to be detected in reflected light on the material.

Mains power supply

220 V

Additional unwinding axis for handling non-cylindrical bales on the cardboard bobbin inside

The axle is necessary for working with non-cylindrical bales on the bobbin. when using the "axle rewind" function, the machine automatically switches off the drive of the unwinding rollers in order to save energy consumption.

Machine stop sensor at the end of the bale

the bale end sensor is necessary to increase the measuring accuracy. upon opening the bale end sensor, the machine resets the rewind speed to 5 m/min and the operator finishes the rewind at a low rewind speed.

Reverse (Reverse)

The backstroke function is used for rewinding back the material in case of a missed/clarified defect or if the residual material has been rewound into a roll.

Rewinding scheme

from a cylindrical roll wound on a cardboard bobbin into a cylindrical roll wound on a cardboard bobbin with an outer diameter of at least 40 mm.

Operator panel

touch screen, rotary

Total length of the table working surface

Total length of the table working surface - 3000 mm. screen with bottom illumination - 560 mm. blank surface (laminated chipboard) - 2440 mm.

Automatic material stretch tracking system

Stretch control function, allows rewinding and accurate metre measurement of slightly elastic materials.

Electronic programmable counter for material length measurement

The electronic meter meter allows you to: use conversion factors that allow you to increase the accuracy of measuring materials of different densities and stretching; - non-volatile power supply of the meter ensures the preservation of the worked

Maximum bale weight

60 kg

Maximum bale diameter

400 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
