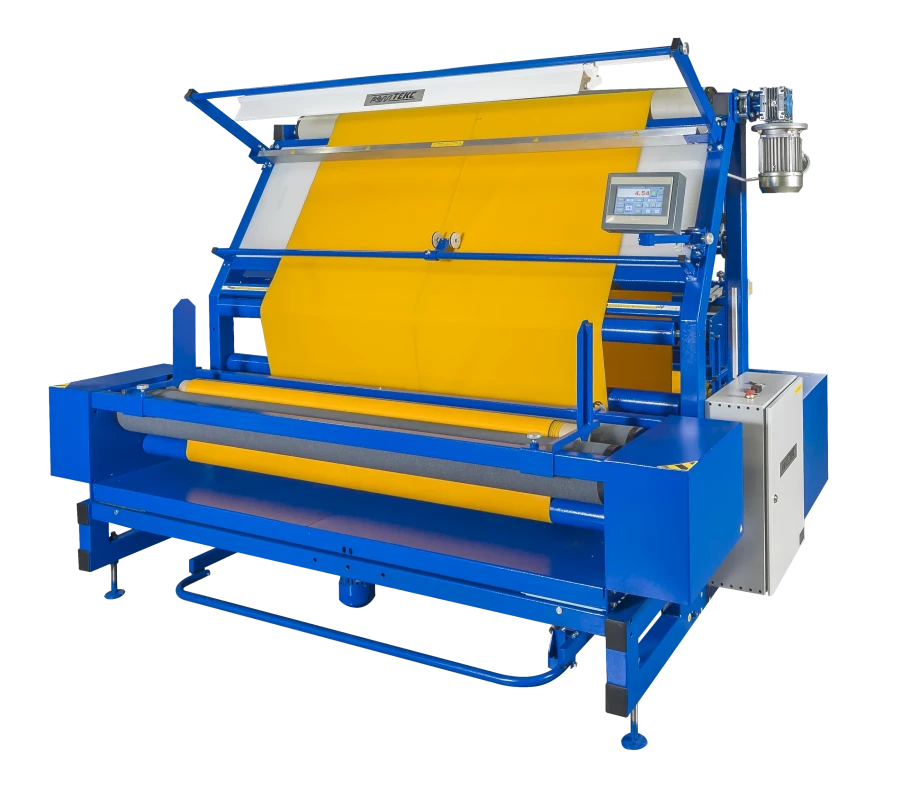

Measuring and Defect Inspection Machine Model B02.10 for Quality Control of Fabrics

The measuring and rejecting machine model B02.10 is designed for rewinding, length measurement and quality control of inelastic and elastic materials, including knitted fabrics. The machine provides rewinding of material rolls with diameter up to 600 mm and weight up to 200 kg. Available in roll widths from 1800 mm/ up to 2000 mm/ up to 2500 mm/ up to 3200/ up to 3500 mm. It is equipped as standard with roll edge levelling system, double material stretch tracking system, electronic programmable metre counter, forward and reverse stroke with twisting into a roll, viewing screen with LED backlight, roll end sensor. The machine can be additionally equipped with additional overhead lighting, device for static removal, density adjustment of the bale winding, cutting manual or automatic knife, ruler for visual measurement of the width of the material, Astra software for the accounting of scrapped bales, weighing system of the winding bale, width adjustment of the bale....
