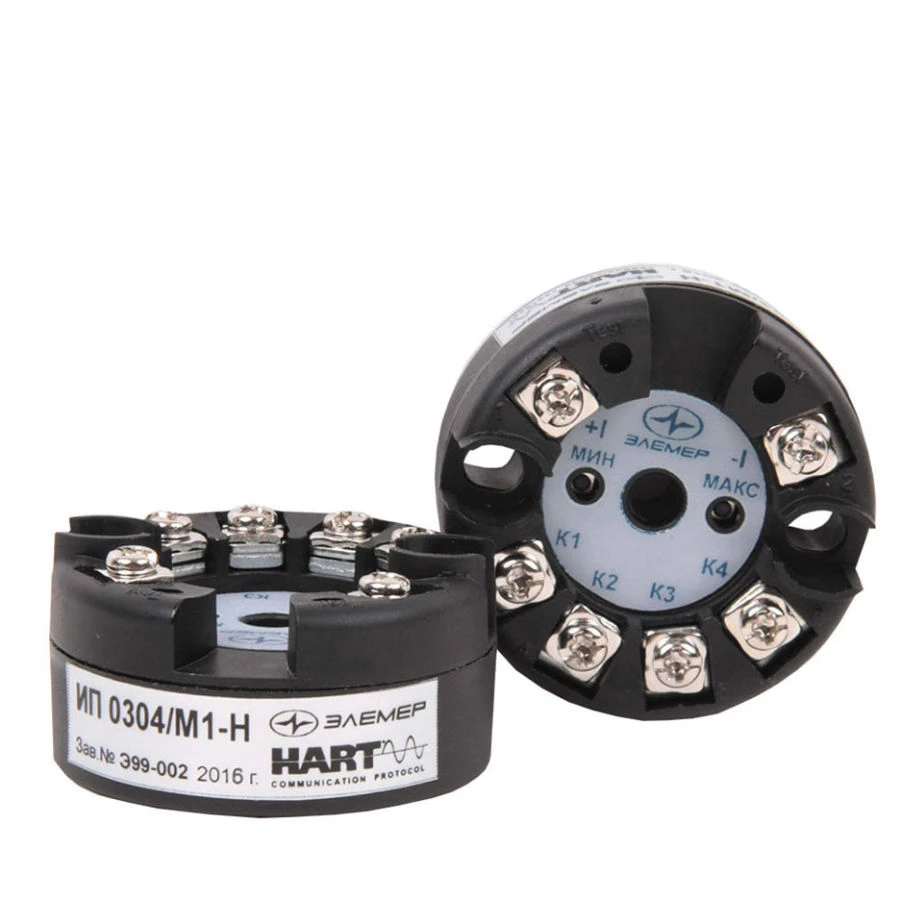

Measurement Converters IP 0304/M1-N for High-Precision Signal Conversion

Digital Signal Converters

Manufacturer: ELEMER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The measuring converters ?? 0304/M1-N are designed to convert signals of thermal resistance converters (RT) according to GOST 6651-2009, thermoelectric converters (TP) according to GOST R 8.585-2001 into current signal 4...20 mA according to GOST 26.011-80 and/or into digital signal on the basis of HART-protocol. It is a part of universal thermal converter TPU 0304/M1-N, and also can be used as a part of thermal converters of other manufacturers.

Explosion-proof versions make IP 0304/M1-N indispensable in the chemical industry, at oil refineries, in the gas industry, as well as at any facilities where there are explosive atmospheres.

Specifications

Mounting of the measuring transducer (MT)

In the case of the temperature converter or on the EM-MP 45N strip for mounting of ?? 0304 on DIN-rail.

Type of digital protocol

HART v.7 (4...20 mA)

Explosion protection

0?? ia IIA T6T4 Ga X, 0?? ia IIB T6T4 Ga X, 0?? ia IIC T6T4 Ga X

Vibration resistance according to GOST R 52931-2008

Group N3, F2, G2

Type (NCC) of primary converter

50M, 100M, 50P, 100P, Pt100, TZhK(J), TKhK(L), TKHA(K), TPP(S), TPP(B), TNN(N)

Climatic version

Performance group according to GOST R 52931-2008: C2 (from minus 55 to plus 70), C3 (from minus 25 to plus 70).

Output signal, mA

4...20

Degree of protection against dust and moisture

IP20

Power supply voltage

=16...42 B

Overall dimensions

Diameter 45 mm, height 23 mm

Electromagnetic compatibility (EMC)

IIIA

Inspection interval

Up to 4 years old

Warranty period

24 months (from commissioning) or 36 months (from shipment)

Programmable error current

"Low" (3.7...3.8 mA) or "High" (20...23 mA)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
