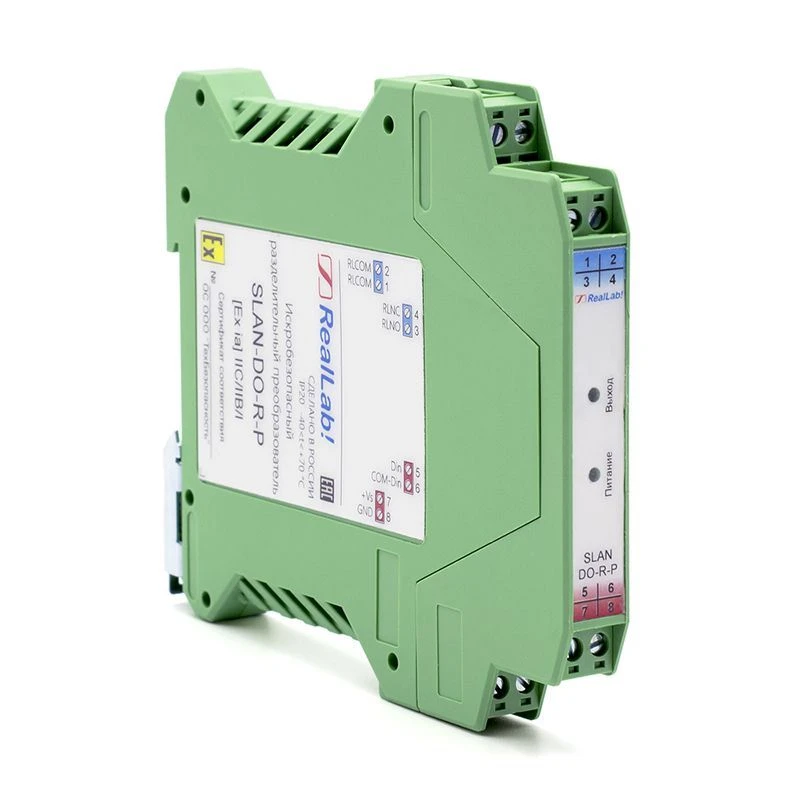

Explosion-proof Signal Isolation Converter with Relay Output SLAN-DO-R-P for Safe Signal Transmission

Purpose: intrinsically safe transmission of discrete signals from the explosion-proof zone to the explosion-proof zone with relay output and without built-in power supply of "dry contacts" Intrinsic barrier type: active with galvanic isolation Type of signal/sensor: "discrete logic" or "dry contact". Number of sensors to be connected: 1 Signal parameters or connection method: 0-30 V Number of outputs: 1 Relay output parameters: 4 A / 30 V; 0.5 A / 250 V Galvanic isolation: input, output, power supply - 2500 V Types of protection: against incorrect polarity connection of the power supply source Power supply voltage: 10-30 V Power consumption: not more than 1.5 W Explosion protection marking: [Ex ia] IIC/IIB/I Operating temperature range: -40°C to +70°C Average MTBF: 120 000 hrs. Average service life, not less than: 12 years Overall dimensions (HxWxH): 99x12.6x113.6 Mounting: on DIN-rail Degree of protection: IR20 according to GOST 14254-2015 Warranty: 18 months.
