4-Channel Temperature Input Module MCS100-AI4TR Available for Import

4-Channel Temperature Input Module MCS100-AI4TR for Reliable Temperature Measurement

Digital Signal Converters
Manufacturer: SPBEX-MINING LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

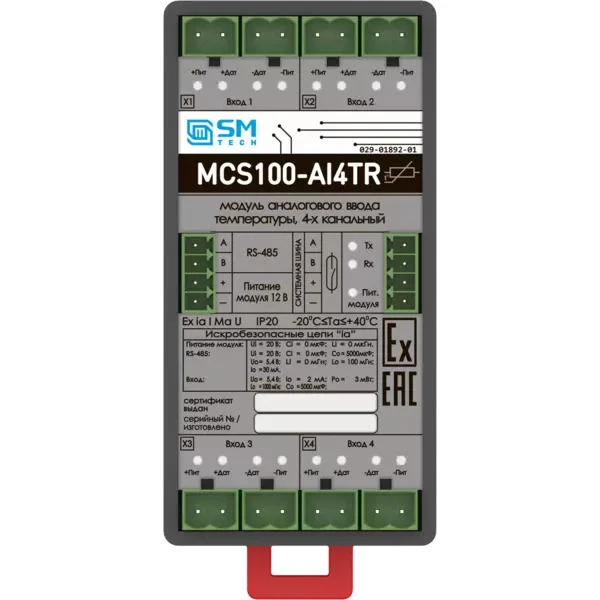

Module analogue input temperature, 4-channel MCS100-AI4TR is designed to receive and process signals from temperature sensors (thermistors)

Specifications

Weight
0.13 kg
Overall dimensions
122 x 55.5 x 32 mm
Mounting the device
DIN rail: -type, width 35 mm, recommended height 7.5 mm/15 mm
A communication protocol used to transmit information
ModBus-RTU; ModBus-ASCII; internal
Communication interface
RS-485
Connection diagrams of thermal converters
2-wire, 3-wire and 4-wire
Measured temperature range
-100...1000 °C
Measured resistance range
0...10000 ohm
Type of thermistors to be connected
Pt100, Pt1000, ???50, ???100
Power consumption, max.
1 W
Rated supply voltage
B1/B8 2100/900 MHz V
Protection class against electric shock
III
Degree of protection against external influences
IP20
Operating temperature
-20...40 °C
Explosion protection marking
Ex ia I Ma U*

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
