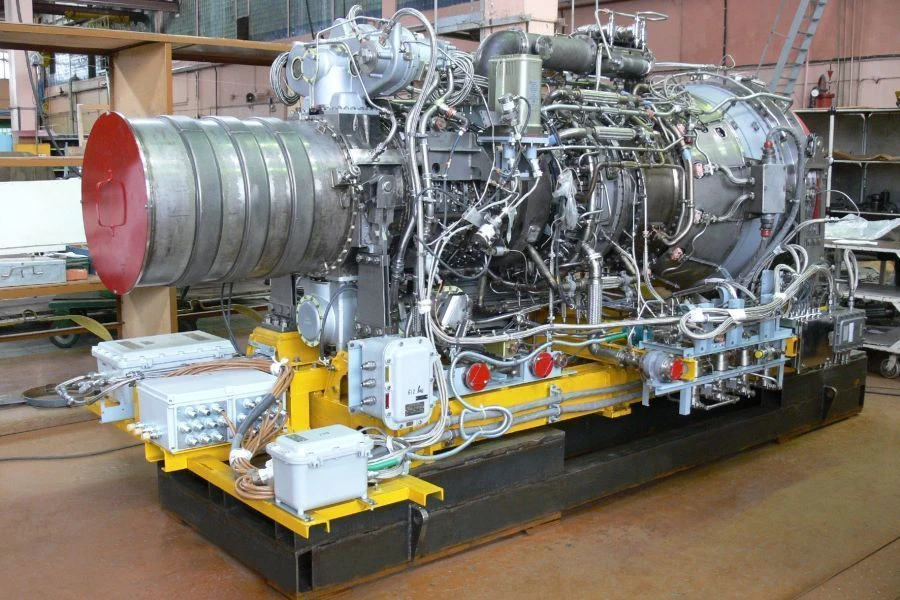

Marine Dual-Fuel Gas Turbine Engine for Power Generation E70/8RD

Marine Dual-Fuel Gas Turbine Engine E70/8RD for Marine Power Applications

Manufacturer:PJSC "ODK-SATURN"
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

E70/8RD is a marine dual-fuel gas turbine engine (GTE) for use in ship propulsion systems, drive of electric generators and gas compressors in marine and seaside industrial facilities of small and medium capacity (from 8 MW and above).

Design Features:

- 10-stage compressor
- annular combustion chamber
- 2-stage compressor turbine
- 3-stage power turbine

Benefits:

- Ability to operate on different types of fuel: gaseous (natural gas, associated petroleum gas) and liquid (paraffin, diesel fuel)
- ability to switch from one type of fuel to another without stopping the engine
- high efficiency and fuel efficiency
- design specially developed for marine applications, approved by the Russian Maritime Register of Shipping
- high indicators of reliability and resources of GTEs and units based on them (gas generator tested in operation as a part of gas turbine drives of GPA)

Specifications

Weight (on frame), t
4.75 t
Height, m
1.81 m
Width, m
1.92 m
Length, m
3.95 m
Gas flow rate at the outlet, kg/s
30
Gas outlet temperature, °C
470 °C
Fuel consumption (at nominal mode), kg/hour
2120
Fuel used
gas ; diesel
N of output shaft, rpm
6084
EFFICIENCY (ISO 2314), %
34.4 %
Power at the output shaft, MW
8.68

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
