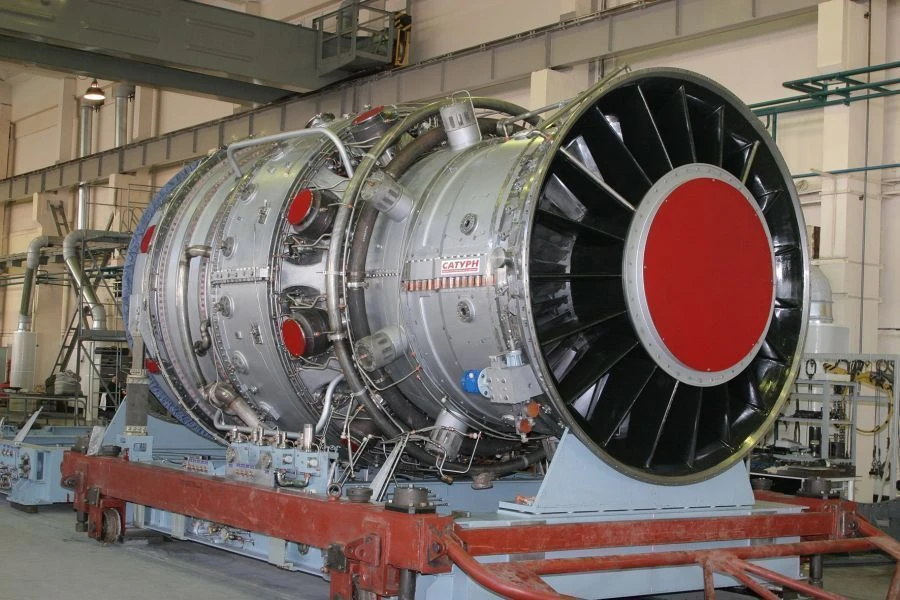

Gas Turbine Engine GTE-110M for High-Power Energy Solutions

GTD-110M is a single-shaft gas turbine for driving electric generators as part of gas turbine power and combined cycle gas turbine units of large capacity.

Design Features:

- 15-stage compressor
- tube-and-ring combustion chamber (20 flame tubes)
- 4-stage compressor turbine
- gearless connection to the generator

Benefits:

- the best combination in the 60-180 MW machine segment
- good transient dynamics
- high fuel efficiency, reducing the cost of electricity and heat generation
- ability to operate on different types of fuel: gaseous and liquid fuels
- flexibility of integration of GTE-110M and power units based on it
- installation and commissioning of power units within a short period of time (delivery of GTE-110M assembled on a frame, use of high availability units)
- reduction of capital expenditures for modernisation / construction of power facilities; reduction of operating costs
