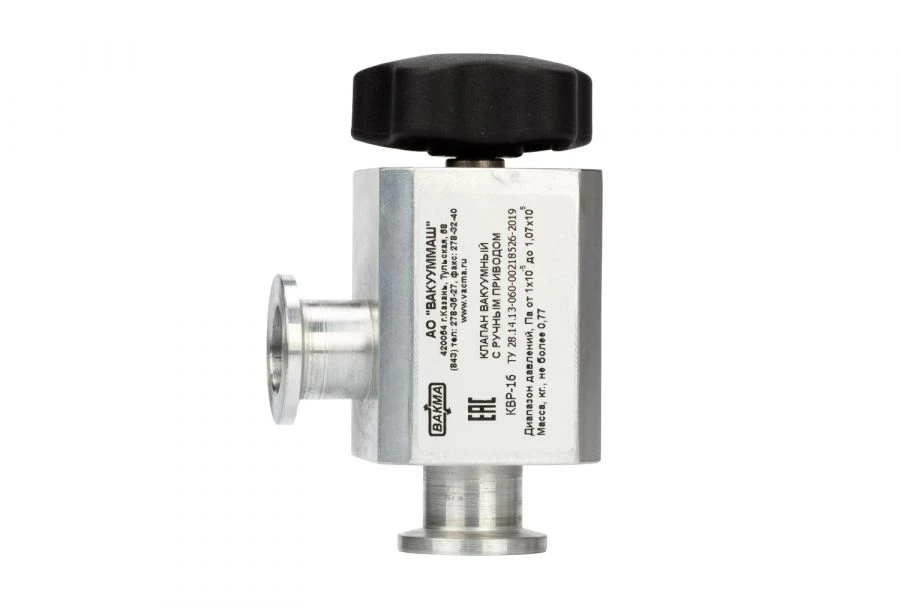

Manually operated vacuum valve KVR-16

Pipeline Control Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Vacuum valve with manual drive KVR-16 with nominal bore 16 mm is designed for shut-off of vacuum systems in the range of operating pressures from 1x10 -5 to 1,07x10 5 Pa. They are manufactured in climatic version UHL4 and O4 according to GOST 15150-69. Operating medium - air and non-aggressive gases. Vacuum valve with manual drive KVR-16 is not intended for use in fire-explosive production.

Specifications

Conductivity (theoretical) in molecular mode, m3/s, not less than 0.0055

Tightness norm, l-Pa/s, not more than 1,0?10 -7

Handle force at the moment of sealing, N?m, not more 1

Pressure drop in closed position, on either side of the valve, Pa, max. 1,07?10 5

Pressure drop in closed position, on either side of the valve, Pa, max. 62,5x98x45 mm

KVR weight, kg, not more 0.77 kg

Weight of KVR with aluminum case, kg, not more 0.49 kg
