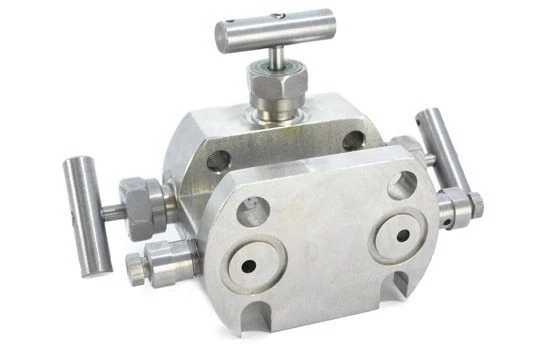

Pressure Differential Sensor Connection Block BKN-3 for Process Control

Pipeline Control Valves

Manufacturer:ITek BBMV LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for connection of pressure difference sensors to measuring lines in systems of automatic monitoring, regulation and control of technological processes. All versions of valve blocks have two independent connection lines. BKN versions with drain valves allow to discharge the working medium from the pulse line and also to connect a monitoring device.

- Nominal pressure of the working medium is 40 MPa.
Temperature range of working medium - 60...+ 150°C
Weight of BKN3 is not more than 2.4 kg.
Class of tightness of valves A according to GOST 9544-2015.

Specifications

Airtightness class

And according to GOST 9544-2015

Operating medium

Liquid, steam, gas

Nominal pressure of the medium

40 MPa

Operating medium temperature range

- 60...+ 150°? °C

Weight

Not more than 2.4kg. kg

Housing material

12CR18NI10T

Assigned service life

15 years

Assigned resource

96000

Designated life of each valve

100 cycles

Connection to impulse line

flanged, socket
