Available for Import

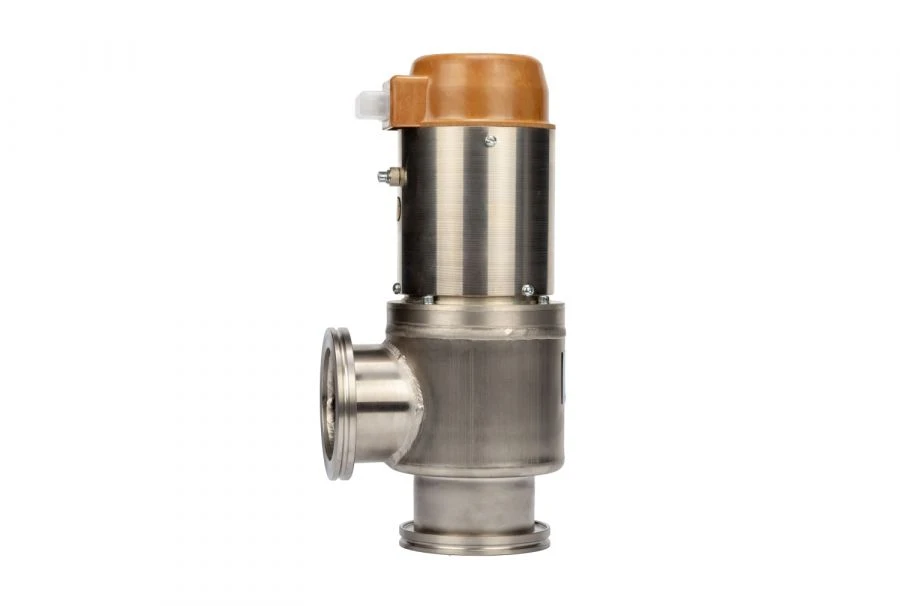

Vacuum valve with electromagnetic actuator KVM-63
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Vacuum valve with electromagnetic actuator KVM-63 with nominal bore 63 mm is designed for shut-off of vacuum systems in the pressure range from 1x10 -5 to 1,07x10 5 Pa. The valve KVM-63 works together with the valve control device UUK-1. It is manufactured in climatic version UHL4 and O4 according to GOST 15150-69. Operating medium - air and non-aggressive gases. Vacuum valve with electromagnetic actuator KVM-63 is not intended for use in fire-explosive production.
Specifications
Conductivity (theoretical) in molecular mode, l/s, not less than
180 l/s
Tightness rate, Pa-m3/s, not more than
1,0?10 -10
Pressure drop in closed position, Pa, not more, at higher pressure above the valve
1,07?10 5
Pressure difference in closed position, Pa, not more, at higher pressure under the valve
1,33?10 3
Opening (closing) time, s, not more than
0.5
Power-on time, %
100 %
Operating pressure range, Pa
1.00x10 -5 to 1.07x10 5
Overall dimensions, in mm, not more than
150x310x120 mm
Valve weight, kg, not more
8 kg
UUK weight, kg, not more
0.7 kg
