Main board electronic module for DVB-T2 TV 43"

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

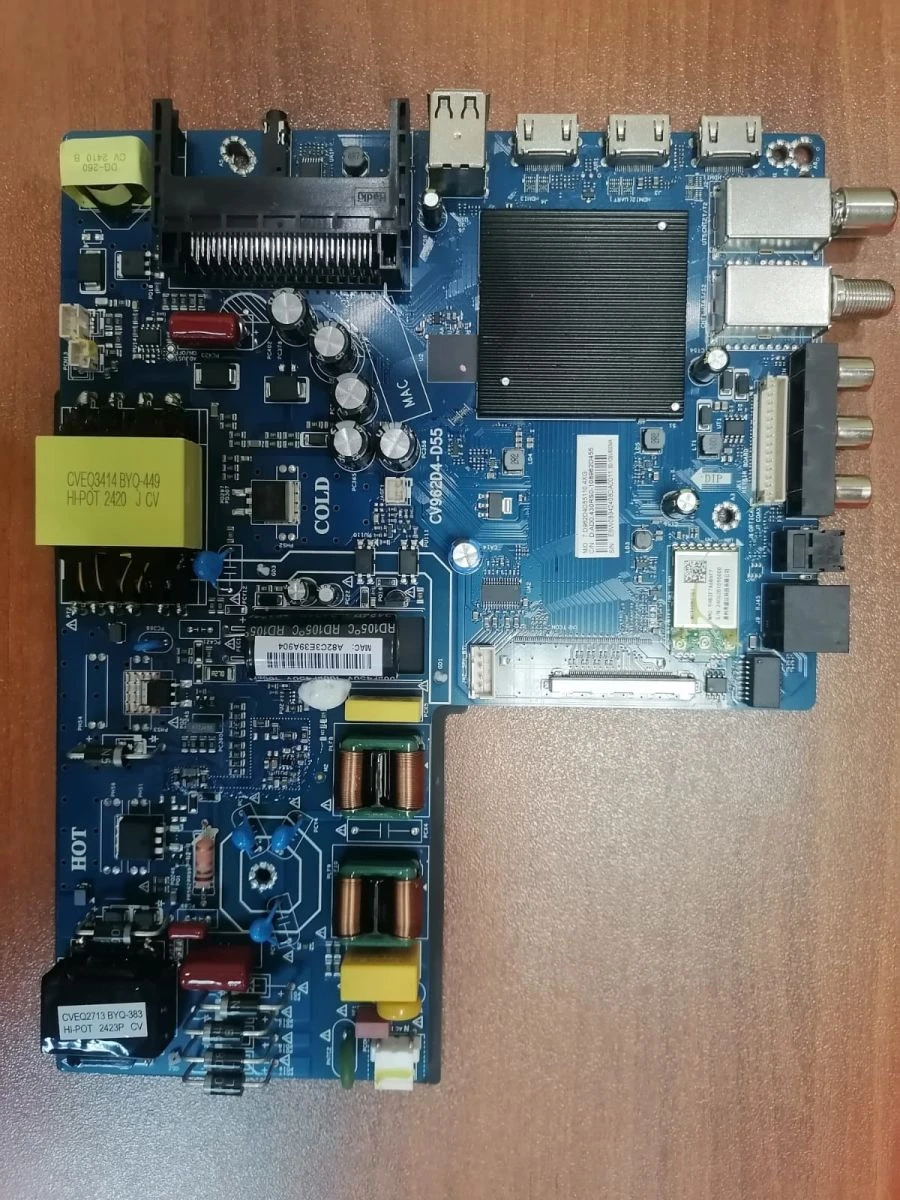

"Electronic module (EM) of the main board for digital TV standard DVB-T2 43"" is designed for use in serial production of DVB-T2 type TV receivers with LCD screen diagonal of 109 cm (43 inches) in various housings. It is mass-produced to replace imported main boards of digital domestic TV receivers and is compatible with a wide range of component parts (housings, cables, types of LCD glasses, etc.). Supplied with basic software and codes for digital access and data protection services (upon agreement). Additional customised high-level software is available (by agreement).

Technical Specifications

Matrix	IPS matrix
Connectors	2x USB-A, 3x HDMI, Ethernet 10/100 Base-T, RCA, SPDIF/Toslink, DVB-S F-type, TRRS mini-jack, CI/CI+ slot, DVB-T, AV RAM 1.5MB RAM 16MB
Types of received TV signals	DVB-S2/DVB-S/DVB-T2/DVB-T/DVB-C/ATV
WiFi and LAN and Bluetooth	802.11b/g/g/n/ac 2.4GHz / 5GHz (2T2R); and 100/10MB and version 5 SMART Android version and Shell (bootloader) 13.0 version, AOSP customized
Number of speakers and sound output power	2 x 8 W
LCD panel type	DLED HD-ready and FHD
Availability of video connectors	RF 75 ohm antenna input, DVB-S2/S input, composite AV input, component YPbPr input, 3xHDMI input, coaxial audio output, 2xUSB 2.0, CI+, LAN, headphone input

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
