System board Lime 5B

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

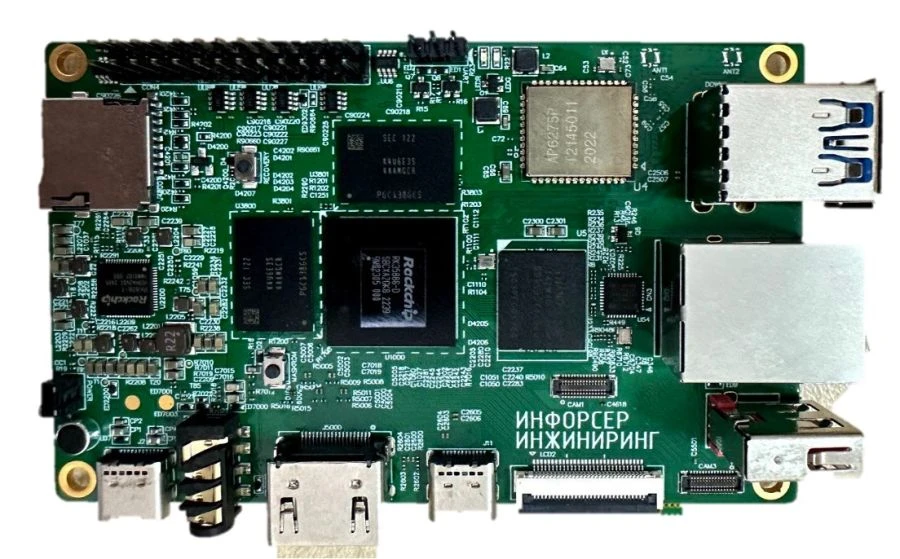

System board Lime 5B LAVR 425790.040 - the basis for the implementation of a wide range of devices that require: computing power, the use of interfaces to organise interaction with other devices and the organisation of the device-human interface. It can be used as a motherboard for personal computers and servers, systems with artificial intelligence, augmented/virtual reality devices and smart home. The board comes with Rockchip RK3588S or similar processor installed.

Technical Specifications

Network support	Ethernet 10/100/1000 Mb/s, WiFi 6, BT 5.0 (BLE)
Video output	HDMI 2.1, 2 x MIPI D-PHY TX 4Lane
Video input	1 x MIPI CSI 4Lane, 2 x MIPI D-PHY RX 4Lane
Audio input/output	Audio module with 3.5mm jack, microphone input (optional with microphone), HDMI output
Interfaces	1 x USB 3.0, 2 x USB 2.0 (one shared with Type-C), 1 x USB 3.0 Type-C; UART, PWM, I2C, SPI, CAN, GPIO; Serial port for debugging
Power interface	Type-C
Supply current	4 A
Power supply voltage	5 V
Operating temperature range	1...40 °C
Length	100 mm
Width	62 mm
Height	20 mm
External memory	Connectors for storage devices: MicroSD (TF)
Neuroprocessor	Support INT4/INT8/INT16 operations
GPU	ARM Mali-G610
Non-volatile memory	EMMC 32GB/64GB/128GB/256GB
RAM	4GB/8GB/16GB
Processor	Rockchip RK3588S

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
