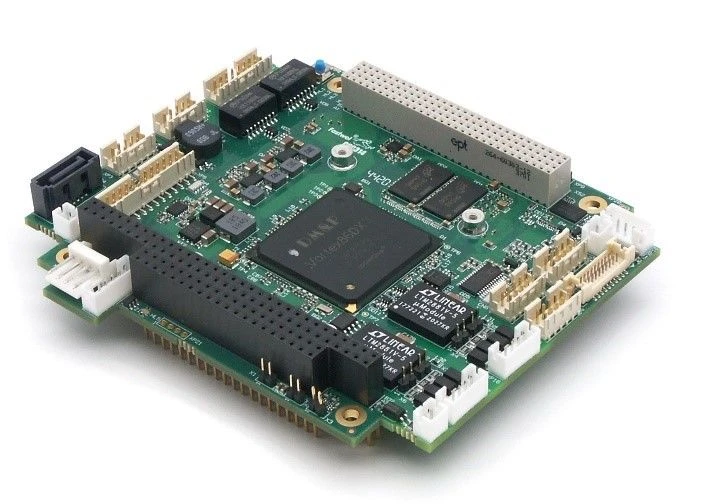

Processor module CPC314-02 (IMES.467444.148-02)

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Processor module CPC314-02-COATED (IMES.467444.148-03) Processor module CPC314-01-COATED (IMES.467444.148-01)

The CPC314 processor module is a highly integrated solution on the x86 platform for use in real-time control systems, production control, data acquisition and processing and can operate in stand-alone or slave mode. Connection of basic I/O means (VGA monitor, LVDS panel, keyboard, mouse, printers, USB devices) allows to use the product in systems with operator participation. For data storage can be used as a microSD card installed at delivery in the socket, as well as an external drive connected to the SATA port, or external USB devices. The product is designed in PC/104-plus format. Expansion of the product functionality is also possible by connecting additional expansion modules of PC/104 and PC/104-plus format. The product can be connected to RS-232, RS-485, Ethernet networks, which allows to use it in distributed systems of input-output and information processing.

Technical Specifications

Operating temperature range	From minus 40 C to plus 85 C
Power supply voltage	4.75 to 5.25 V, active protection against short circuit, overvoltage (up to 30 V) and wrong polarity (up to -30 V); current consumption max. 2 A
Software compatibility with OS	FREEDOS (pre-installed); Linux (kernel version 4.9); Windows Embedded Standard 7
Opto-isolated reset / interrupt	Armoured glass
Real Time Clock	Armoured glass
Watchdog timers	Two watchdog timers (WDT) with programmable interval from 30.5 µs to 512 s
Non-volatile memory	FRAM (SPI) 8 Kbytes, SPI interface, no battery power required
PCI/104-plus (PCI)	32-bit PCI bus, frequency 33 MHz
PC/104 (ISA)	8/16 bit ISA bus, frequency 8/16 MHz
Integrated module temperature sensor	Measuring range from minus 55 C to plus 125 C
Serial ports	COM1, COM2: RS-232 (9-wire, full), exchange rate up to 115.2 Kbps, 15KV ESD protection (IEC1000-4-2); COM3, COM4: isolated RS-422/485, RS-422/485 exchange rate up to 115.2 Kbps, individual isolation of each port from the system 500V, auto-isolation of each
PS/2 port for keyboard/mouse connection	Armoured glass
GPIO port	8 I/O lines; compatible with +5 V level (TTL)
LPT port	Armoured glass
USB ports	Supports up to two USB 1.1, USB 2.0 devices; supports booting from USB devices
LAN ports	LAN1, LAN2: Fast Ethernet 10 / 100 Mbps
MicroSD storage	Support SD, SDHC, speed class 6 cards up to 32GB; card is defined as Primary IDE Master drive in system
Audio port	Microphone connection port (mono); Line-In, Line-Out ports (stereo)
FLASH BIOS	2 Mbyte, modifiable in the system
Video subsystem	Video controller with 2D gas pedal; VGA monitor connection port with resolution up to 1920x1440, color depth 32 bits; LVDS panel connection port with resolution up to 1920x1440, color depth 32 bits
RAM	DDR3 SDRAM 2 Gbytes (soldered on the board), bus frequency 667 MHz
Processor	DM&P Vortex86DX3

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
