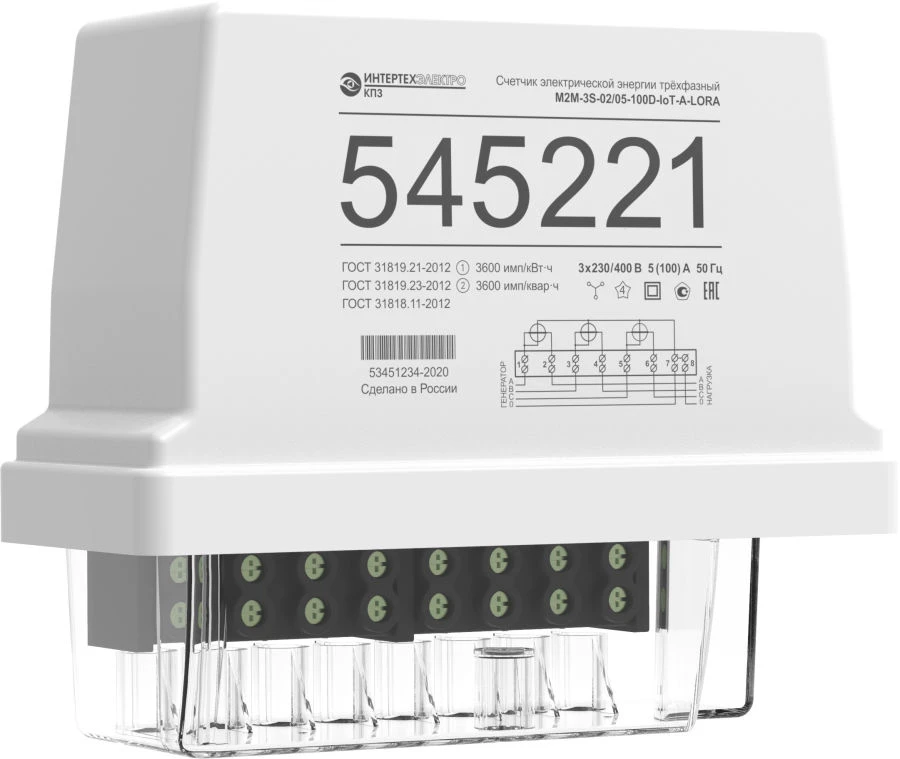

M2M-3S three-phase multifunctional energy meter

Electricity Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

M2M-3S three-phase multifunctional electricity meter is designed for bidirectional multi-tariff metering of active and reactive electrical energy and power in three-phase three- or four-wire AC networks. It can be used both stand-alone and as part of automated information and measurement systems for electricity metering under the SPODES protocol (IEC62056 DLMS/COSEM). M2M-3S meter is designed for outdoor installation and has an increased level of protection against environmental impact. Field of application: enterprises of power engineering, industry, agriculture and housing and communal services; suitable for metering in apartment buildings and private sector.

Specifications

Maximum operating temperature 70 °C

Minimum operating temperature -40 °C

Type of readout device Electronic

Maximum current 100 A

Rated current 5 A

Type Multi-tariff

Number of phases 3

Dimensions, DxWxH, mm, not more 220x180x96

Type of metered energy Active and reactive

Weight 1.6 kg

Supported protocols SPODES

Backup communication channel RS-485; RF; LoRa; PLC; Ethernet; Bluetooth Low Energy (BLE)*

Main communication channel 2G (GPRS)

Mounting type DIN rail or screws

Accuracy class for reactive energy 2,0

Active accuracy class 1,0

Rated line voltage 400 V

Nominal phase voltage 230 V

Degree of protection against penetration of solid objects and water according to GOST 14254-2015 IP54

Operating voltage range 185...265 V

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
