Available for Import
Milur 107S.22-GR-1L-DT static electricity meter
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

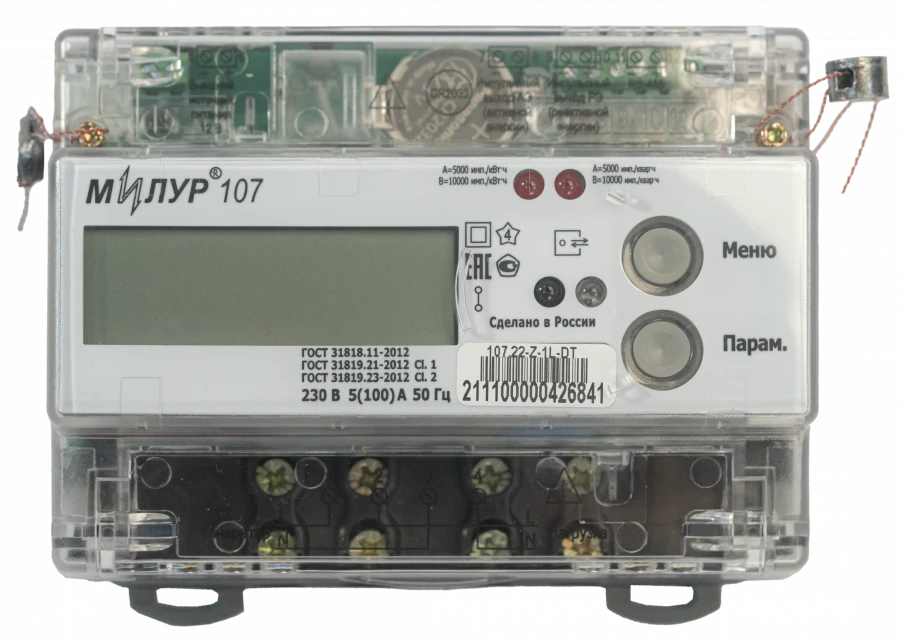

Milur 107S static single-phase electricity meter with SPODES protocol support is designed for metering active and reactive electricity consumption in two-wire AC network with frequency 50 Hz.
The metering device can work both autonomously and as a part of automated metering systems, registering electricity consumption and storing data in non-volatile memory, information exchange is carried out via RS-485 data transmission interface and PLC technology via Mi107 protocol.
Parameters on the consumed volume of electricity are displayed on the liquid crystal display. The metering device is equipped with an optoport, a load control relay and a measuring element in the neutral wire.
The metering device can work both autonomously and as a part of automated metering systems, registering electricity consumption and storing data in non-volatile memory, information exchange is carried out via RS-485 data transmission interface and PLC technology via Mi107 protocol.
Parameters on the consumed volume of electricity are displayed on the liquid crystal display. The metering device is equipped with an optoport, a load control relay and a measuring element in the neutral wire.
Specifications
Accuracy class
2.0, 1.0
Nominal voltage
230 V
Rated current
5 A
Mounting method
DIN rail
Maximum current
100 A
Maximum operating temperature
70 °C
Minimum operating temperature
-40 °C
Type of metered energy
Reactive, Active
Type of readout device
Electronic
Number of phases
1
Type
Multi-tariff
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
