Available for Import

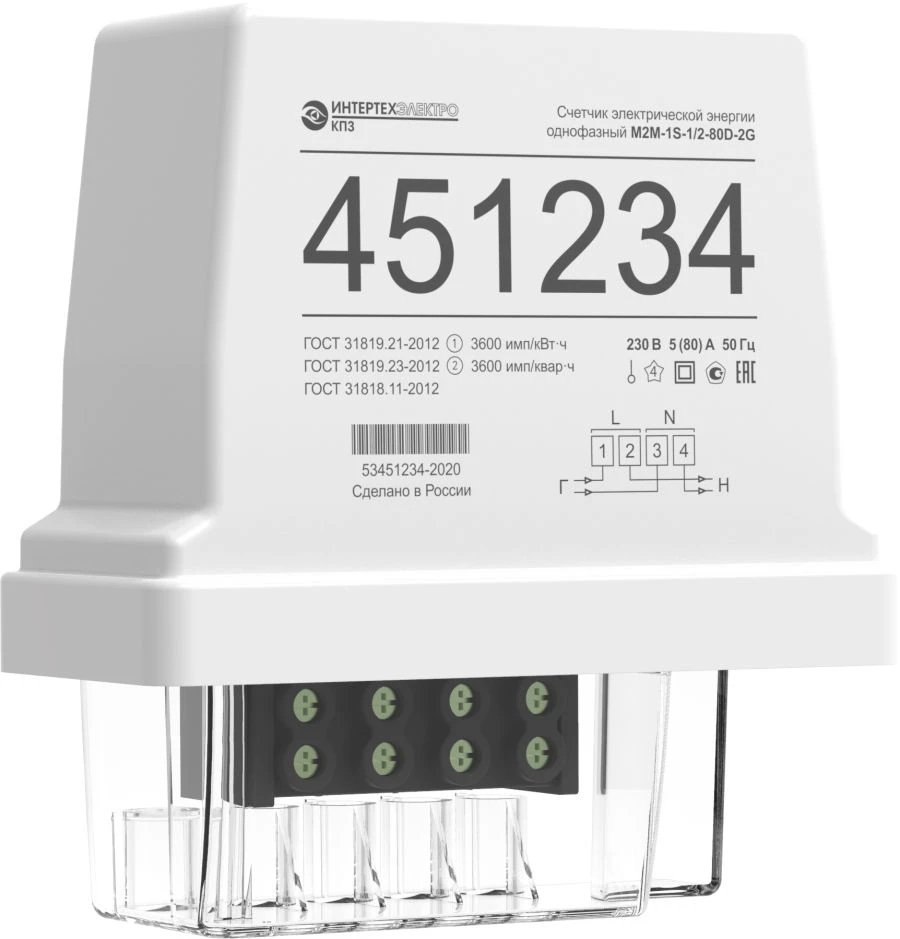

M2M-1S single-phase multifunctional energy meter

Electricity Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

M2M-1S single-phase multifunctional electricity meter is designed for multi-tariff metering of active and reactive electricity of forward and reverse directions in single-phase AC networks. It can be used both autonomously and as part of automated information and metering systems for electricity metering under the SPODES protocol (IEC62056 DLMS/COSEM). M2M-1S meter is designed for outdoor installation and has an increased level of protection against environmental impact. Field of application: enterprises of power engineering, industry, agriculture and housing and communal services; suitable for metering in apartment buildings and private sector.

Specifications

Rated current 5 A

Maximum current 100 A

Nominal voltage 230 V

Maximum operating temperature 70 °C

Minimum operating temperature -40 °C

Type of readout device Electronic

Type Multi-tariff

Number of phases 1

Dimensions, DxWxH, mm 180x174x82

Operating voltage range 160...265 V

Type of metered energy Active and reactive

Weight 1.1 kg

Supported protocols SPODES

Backup communication channel RS-485; RF; LoRa; PLC; Ethernet; Bluetooth Low Energy (BLE)*

Main communication channel 2G (GPRS)

Mounting type Mounting on a pole

Accuracy class for reactive energy 2,0

Active accuracy class 1,0

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Degree of protection against penetration of solid objects and water according to GOST 14254-2015 IP54

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
