Available for Import

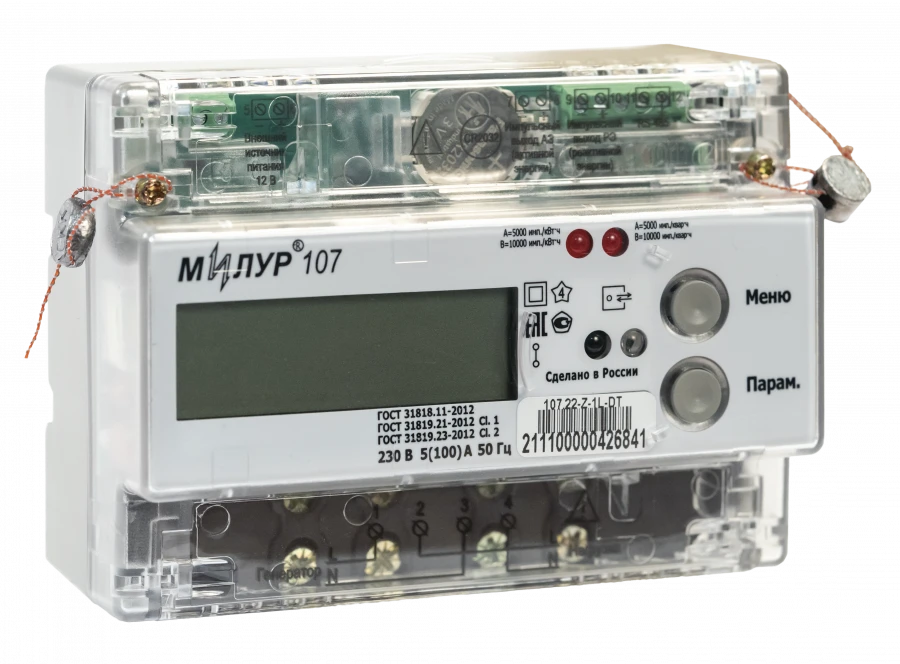

Milur 107S.22-PRZ-1L-DT static electricity meter

Electricity Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Milur 107 static electricity meter (7mTN35 case, extended functionality)

Description

Milur 107S static single-phase electricity meter with SPODES protocol support is designed for metering active and reactive electricity consumption in two-wire AC network with frequency of 50 Hz.

The metering device can work both autonomously and as a part of automated metering systems, registering electricity consumption and storing data in non-volatile memory, information exchange is carried out via RF 433 MHz radio interface, RS-485 and PLC technology via Mi107 protocol.

The parameters of the consumed volume of electricity are displayed on the liquid crystal display. The meter is equipped with an optoport, load control relay and measuring element in the neutral wire.

Specifications

Maximum operating temperature 70 °C

Minimum operating temperature -40 °C

Type of readout device Electronic

Number of phases 1

Type Multi-tariff

Accuracy class 2.0, 1.0

Nominal voltage 230 V

Rated current 5 A

Mounting method DIN rail

Maximum current 100 A

Type of metered energy Reactive, Active

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
