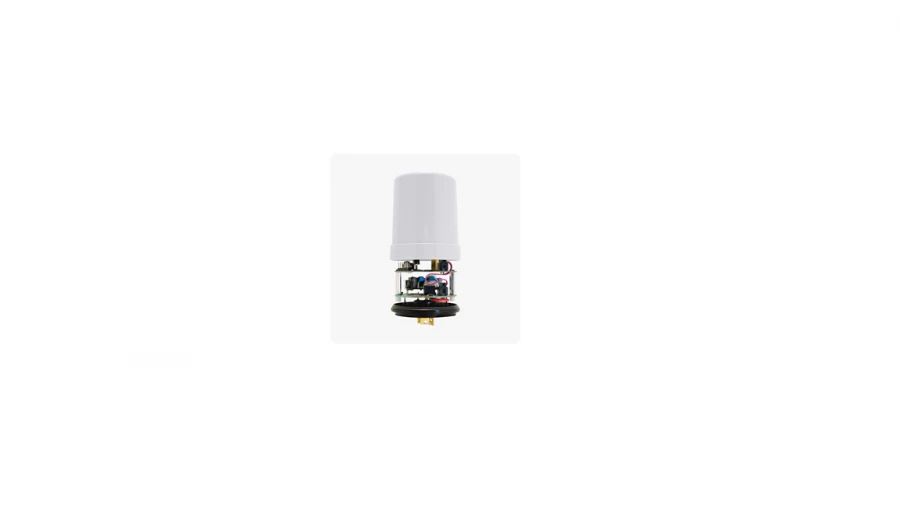

LoRa Single channel luminaire controller LC-2 (LCL-01(b)1-2-ENPGA)

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

LoRa Single channel luminaire controller LC-2 (LCL-01(b)4-2-E) LoRa Single channel luminaire controller LC-2 (LCL-01(b)4-2-ENP) LoRa Single channel luminaire controller LC-2 (LCL-01(b)4-2-EP) LoRa Controller LC-2 single channel luminaire controller (LCL-01(b)1-2-E)

Description

Designed to function in the LoRaWAN network, it is installed on the luminaire. Performs measurement and transmission of electrical energy parameters: power/voltage/current/power factor. Supports 0-100% dimming function as well as Dim-to-off function. Optionally can include GPS, accelerometer, light sensor.

Specifications

Power supply voltage 264 V

Availability of a memory card slot no

Number of channels 1 pc

Switching voltage range 30 V

Maximum switched current 4 A

Compatible with modules "designed to control lighting equipment, as well as for the integration of this equipment into the intelligent lighting control module of the universal platform of the internet of things ambiot."

Communication speed with I/O modules 27

Composition single channel luminaire controller

Software platform ambiot

Structure the controller realizes the lower (executive) level of the system. it is connected to the platform by means of lorawan communication networks. it is compatible with lighting fixtures equipped with ansi c136.41-2013 (nema) connectors with pinout.

Minimum program cycle 1

Type of input signals controller is installed in the luminaire and connected to the central controller, which belongs to the middle level of the system.

Overall dimensions, mm 84x108x84

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
