Gas turbine engine control unit T32

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

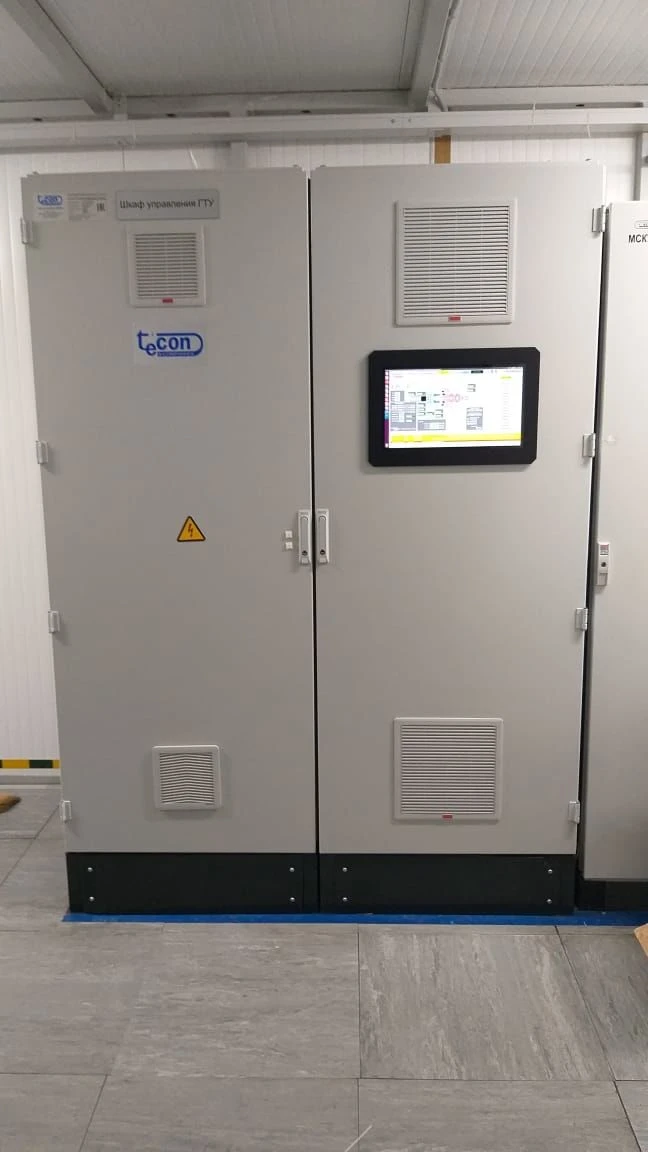

Gas turbine engine control unit (GTU) T32 is designed for automatic monitoring, control and regulation of gas turbine unit (GTU) T32 (MS5002E), which is a part of gas pumping unit GPA-32 "Ladoga" (GPA) and transfer of necessary parameters to automatic control system of GPA via physical and interface communication channels

Specifications

Power consumed by the system at rated supply voltages from DC mains (in the absence of mains), not more than 0.5 kW

Power consumed by the system at nominal supply voltages from the AC mains, not more than 2.7

Main supply voltage of 3-phase AC mains, V 187...242 V

Frequency of the main supply network, Hz 49...51

Emergency DC mains voltage, V 187...242 V

Reliability indicators: service life, years, at least 30 a

Average MTBF of the "GPA failure pass" type when the system operates under normal climatic test conditions according to GOST 15 100000

Degree of protection according to GOST 14254-2015 IP54
