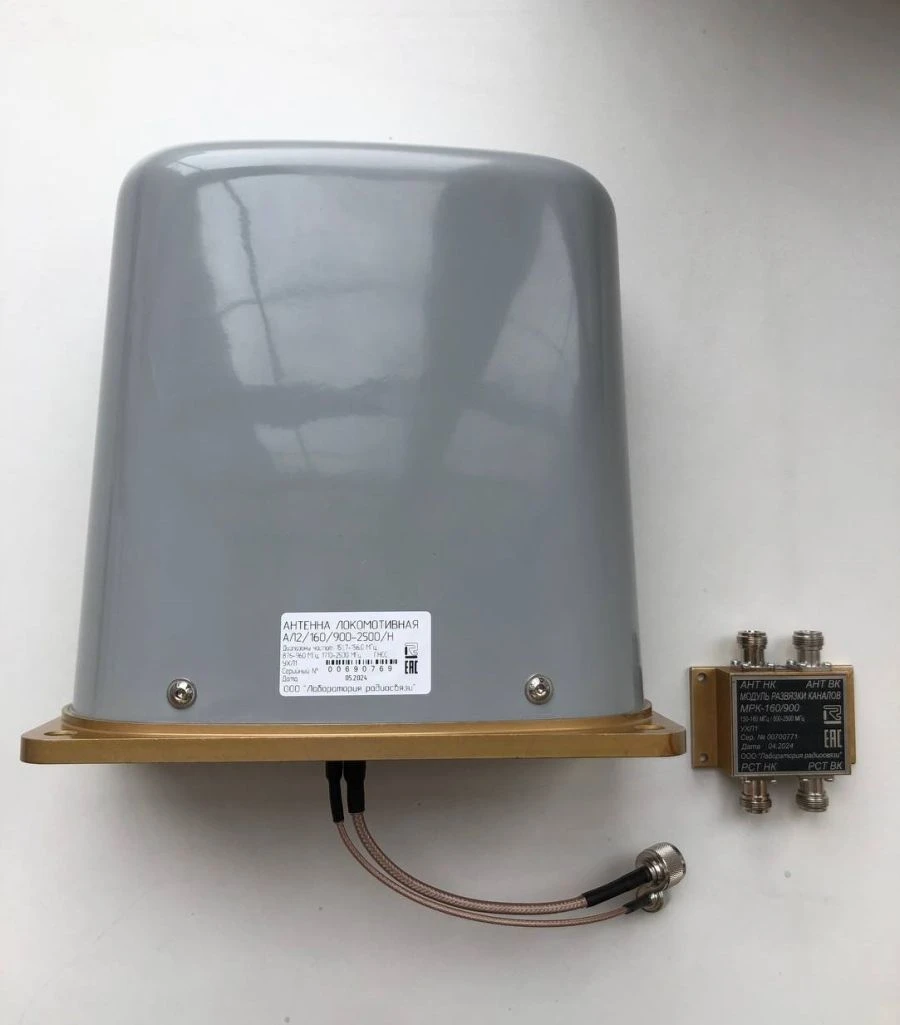

Locomotive antenna AL2/160/900-2500/H

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Antenna AL2/160/900-2500/N CD ALVR.464641.034 is manufactured in accordance with the requirements of technical specifications ALVR.464641.034 TU, designed for operation as part of locomotive radios of train, station and maintenance-operational radio communication and radio facilities of railway traffic safety systems in DMR/GSM-R/GSM900/GSM1800/UMTS/WLAN/WiMAX/WiFi standards, and also as part of location systems of GLONASS/GPS standards.

Technical Specifications

Polarization	Vertical
Weight	3.5 kg
Power supply voltage	13.2 V
Operating wind speed	432
Connector	Two N-type sockets for metre and decimetre antennas and a TNC-type plug for GLONASS/GPS.
Power consumption	0.12 W
Equipment	Antenna, channel isolation module MRK-160/900, passport, packing
Antenna gain with respect to isotropic radiator, dBi, not less than	In the frequency ranges, MHz: 151,7-156,0 - 1,9; 876,0-960,0 - 5,9; 1710,0-2200,0 - 5,2; 2200,0-2500,0 - 4,5
Degree of protection in operating position	IP66 according to GOST 14254-2015
Horizontal directional pattern	Close to circular with deviation not more than 3 dB
Wave impedance	SBVVBG ohm
Operating conditions	The antenna is designed for operation on all mobile objects of railway transportation in train radio communication networks in the following conditions: - ambient temperature from minus 50 C to plus 60 C; - relative humidity 93 % at temperature plus 2
VSWR	Not more than 1,5 in frequency ranges 151,7-156,0; 876,0-960,0; 1710,0-2200,0 and not more than 2,0 in frequency range 2200,0-2500,0 MHz
Operating frequency range	151.7-156.0; 876.0-960.0; 1710.0-2200.0; 2200.0-2500.0 MHz
Dimensions	Antenna (HxDxSh) 255x253x131 mm; module MRK-160/900 (HxDxSh) 87x27x85 mm
Gain factor of the built-in LFM	27...29
Maximum power	Constant input power W, not more (without the use of built-in antenna GLONASS/GPS / / with the use of built-in antenna GLONASS / GPS) in the frequency ranges, MHz: 151,7-156,0 - 25 / 25; 876,0-960,0 - 15 / 10; 1710,0-2500,0 - 10 / 5
Power supply voltage of the built-in MSHU	3.3...13.2 V
Current consumption of the built-in MSI	0.036 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
