Exemplary radiator absolutely black body "Demeter"

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

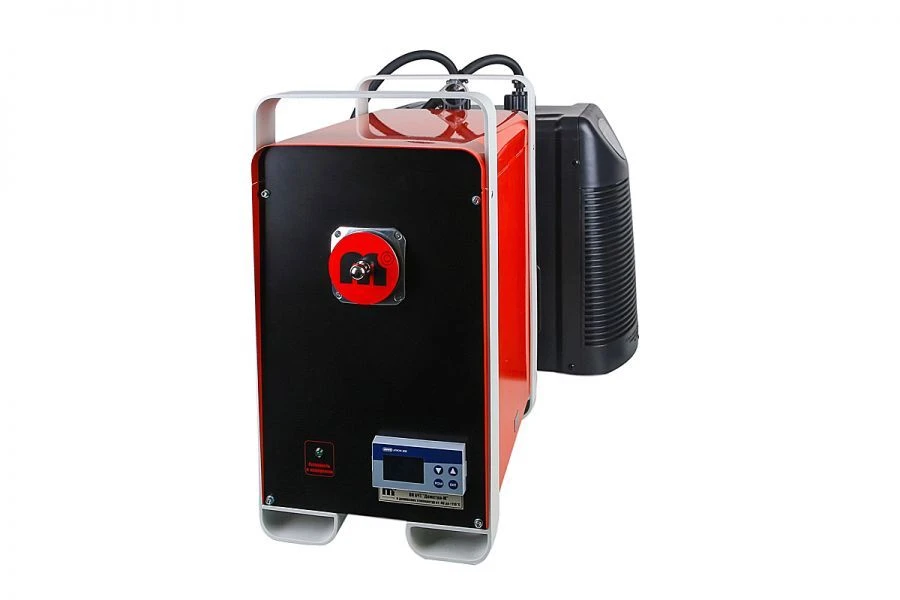

Exemplary radiator absolutely black body "Demetra-M"

Description

The emitter is designed to reproduce the radiation temperature in the range from minus 30 to 80 degrees Celsius. The action of the device is based on the laws of Stefan - Boltzmann and Planck, linking the temperature of a black body and the brightness of its radiation. The value of the cavity temperature is set by means of a regulator having an independent indicator and a contact temperature sensor built into the cavity. For heating of the radiating cavity an electric heater is used. For cooling - Peltier elements. It is available in two discharges.

Specifications

Transmitter weight 18 kg

Transmitter height 488 mm

Transmitter width 254 mm

Transmitter length 400 mm

Transmitter temperature drift over 15 minutes +/-0,2 °C

Effective degree of blackness of the transmitter 996

Depth of the radiating cavity 215 mm

Diameter of the radiating cavity 70 mm

Instability in maintaining the transmitter's temperature +/-0,2 °C

Confidence limits of the error at confidence level 0.95 for transmitters of 2P version: for reproducible range +/- 1.0, +/-(1.0+0.0046xtvos) °C

Confidence limits of error at confidence level 0.95 for transmitters of 1P version: for reproducible range +/- 0.6, +/-(0.6+0.0023xtvos) °C

Discreteness of digital temperature indication 1 °C

Reproducible temperature range -30....+80 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
