Ultrasonic level sensor DTU-2-06-900

Level Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Ultrasonic level sensor DTU-2-06-920 Ultrasonic level sensor DTU-2-06-1191 Ultrasonic level sensor DTU-2-06-1500 Ultrasonic level sensor DTU-2-06-1600 Ultrasonic level sensor DTU-2-06-1000

Description

The ultrasonic level sensor DTU-2-06-900 is designed to measure the level and density of diesel fuel according to GOST 305-2013 grades L, Z, A, temperature measurements and transmission of output information via RS-485 interface.
The operating principle of DTU-2-06-900 is based on the property of ultrasonic signal reflection from the interface between two media and dependence of ultrasonic signal propagation speed in diesel fuel on its density.

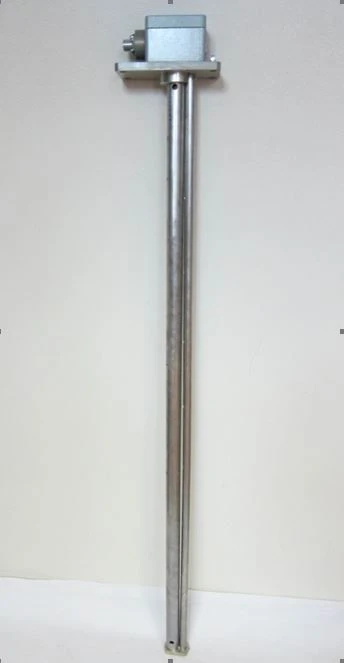

DTU-2-06-900 consists of ultrasonic emitter, measuring tube, tube with temperature sensors and electronic unit.
DTU-2-06-900 meets the requirements of the technical regulations of the Customs Union TR TS 012/2011 "On the safety of equipment for operation in explosive environments" and has Ex-marking "0Ex ia IIA T6 X"..

Specifications

Power supply voltage 6.5...13 V

Service life 10 a

Degree of protection of the outer shell IP54

Fuel level measurement limits 3...900 mm

Fuel density measurement range 800...880

Fuel temperature measurement range -40...50 °C

Tolerance limits of absolute basic error of fuel level measurements ±2 mm

Tolerance limits of absolute basic error of fuel density measurements ±4,5

Tolerance limits of absolute error of fuel temperature measurements ±1 °C

Limits of permissible absolute additional error of fuel level measurements from change of fuel temperature in the range of ±3,5 mm

Limits of allowable absolute additional error of fuel density measurements from change of fuel temperature in the range of ±3,5

Power consumption 2 W

Weight 3.2 kg

Average MTBF 10000

Model DTU-2-06-900

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
