Leak Detection System "Magistral-21" PTK for Telemechanics System

The software and hardware complex "Magistral-21" with functionally separated leak detection subsystem (hereinafter referred to as PTC) is intended for creation of telemechanics systems (STM), implemented to ensure automatic monitoring and automated control of technological processes and equipment of main and in-field product pipelines, condensate pipelines, oil and methanol pipelines, as well as continuous control of their tightness in all modes of operation.
In accordance with the technical assignment for the system development, the delivery set includes:
- at the upper level:
- control point (CP):
STM server with LDS;
STM operator's workstation with LDS;
- data concentrator (TM CD);
- at the lower level - the level of the controlled telemechanics point (KP TM):

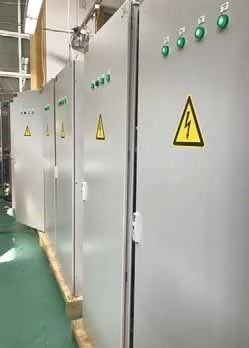

- KP TM control cabinet(s);
- cabinet (cabinets) of ODR (devices for interfacing with the object);
- UPS;
- a set of operating documentation in accordance with the list of operating documents for a particular application...
