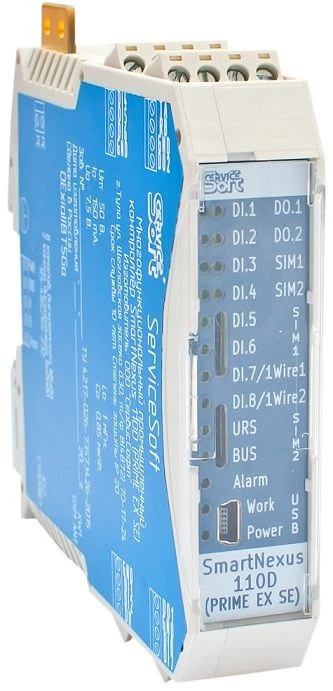

Multifunctional industrial controller "SmartNexus" 110D

Telecommunication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

2.1 Multifunctional industrial controller SmartNexus 110D is designed to collect data from electrical sensors of remote technological objects with their subsequent processing and storage, data transmission via GSM wireless channel to the telemetry server and control of technological equipment by commands of the dispatcher. The controller provides formation and transmission of alarm messages when the values of technological parameters exceed the set limits and allows monitoring of emergency situations. Also, the controller provides data exchange with external devices via RS-232/485 and Ethernet interfaces. The controller provides flexible setting of parameters of acquisition, storage and transmission of measured values as well as selection of standard and specialised protocols of data exchange. Explosion protection level "Explosion-proof" for explosive gas mixtures of category IIB, meets the requirements of GOST 31610.0 (IEC 60079-0), GOST 31610.11 (IEC 60079-11).

Specifications

Weight, not more 300, ?.

Climatic version ?1

Overall dimensions 120 x 115 x 30, mm.

Maximum allowable DC supply voltage range (Upit.) 4,5 - 30, ?

Weight, not more 300, ?.

Degree of dust and moisture protection IP20

Installation method DIN rail

Current consumption in power saving mode,max. 15, µA

Consumption current in GSM standby mode, max. 3, mA

Consumption current in data transmission mode (average maximum value) 50, mA

Number of input counting channels (digital inputs) 8, pcs.

Limits of permissible absolute error of measurement of the number of pulses (for each thousand pulses) 1, imp.

Number of digital inputs (dry contact type) 8, pcs.

Number of digital outputs (open collector) 2, pcs.

Maximum permissible switched voltage/current 30V/0,2A

Discrete input/output to generate an "Alarm" signal 1, pcs.

Number of USB ports 1, pcs.

Number of RS232/RS-485(universal) interface ports 1, pcs.

Number of RS-485 interface ports 1, pcs.

Number of 1-Wire interface ports 2, pcs.

Number of Ethernet ports 1.

Number of GSM modules 1, pcs.

Number of SIM card slots 2, pcs.

Wireless communication standard GSM 900/1800

Hardware supported protocols MODBUS

Input measurement channels «ia»

Other input channels «ia»

Output control channels «ia»

Data interfaces (1-Wire, RS-232/485) «ia»

Controller power input «ib»

Maximum input voltage, Ui 30, ?

Maximum input current, Ii 2, ?

Maximum input power, ?i 7.5, W

Maximum internal inductance, Li 47, µHn

Maximum internal capacity, Ci 0.5, µF

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
