Available for Import

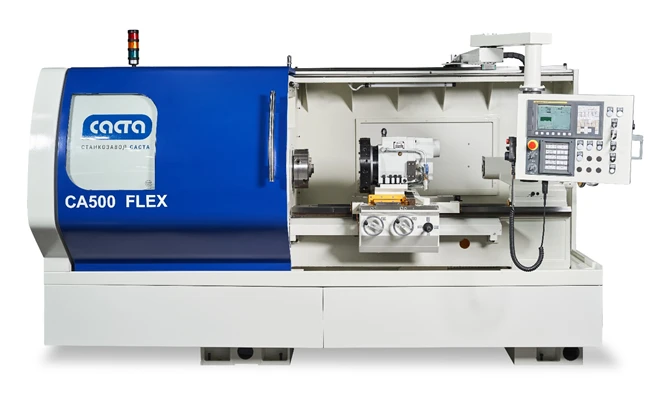

Lathe with LSU CA500CF2
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
-The possibility of upgrading the operational control system (OCS) to a full Fanuc CNC system without additional installation work, by entering a service code.
-Rigid cast iron bed, subjected to artificial ageing process to relieve internal stresses, guarantees long-term stability of geometric accuracy of the machine.
-Wide prismatic and flat slides, hardened to a depth of 1.5-2 mm to a hardness of 52HRC and ground, have high wear resistance.
-Surfaces of travelling units (carriage, tailstock) are scaled and coated with special antifriction coating for travelling with minimum wear.
-The machine has modifications CA500C10F2, CA500C15F2, CA500C20F2, CA500C30F2.
Technical Specifications
| Type of product according to PP RF 616 | Turning and screw-cutting machines (universal, with CNC, CNC) |
|---|---|
| Width | 1616 mm |
| Length | 3297 mm |
| Height | 2170 mm |
| Machine weight, not more | 2400 kg |
| Largest diameter of the workpiece to be mounted above the bed | 500 mm |
| Largest diameter of the workpiece to be machined above the slide | 290 mm |
| X-axis travel (transverse movement of the slide) | 278 mm |
| Z-axis travel (longitudinal movement of the slide) | 946 mm |
| Positioning accuracy | 1 mm |
| Z-axis screw diameter | 40 mm |
| Z-axis screw pitch | 10 mm |
| Z-axis drive power | 1 kW |
| X-axis screw diameter | 32 mm |
| X-axis screw pitch | 5 mm |
| X-axis drive power | 1 kW |
| Maximum spindle speed | 3500 |
| Chuck diameter | 250 mm |
| Diameter of the hole in the spindle for the bar | 55 mm |
| Tool change time | 6 |
| Number of tool slots | 8 pc |
| Moving the tailstock quill | 200 mm |
| Diameter of tailstock quill | 100 mm |
| Maximum pump pressure | 2 |
| Coolant tank capacity | 140 l |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
