KR-71C - Active control panel. 7 buttons, GPI output/input signals, USB, built-in PSU.

Standalone Communication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

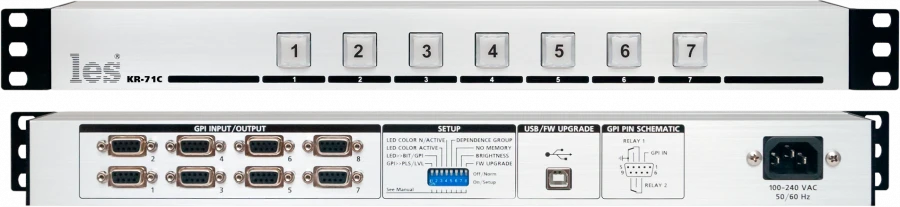

The console is designed to control external devices using GPI signals, has 7 buttons on the front panel, on the back panel there are DB9F, USB connectors and 8-position DIP-switch.
Each DB9F connector corresponds to its own control channel and includes: two relay switching groups (fully isolated and with grounded switching contact), one GPI input signal. The USB connector is used for remote control and configuration of the remote control from a PC. DIP-switch is used for local setting of operating modes. The control buttons have the possibility to change the inscription, backlight colour and to install a protective hinged cover. The warranty period is 24 months.

Technical Specifications

Number of control buttons	7 pc
Number of GPI IN/OUT connectors	7 pc
GPI connector type	DB9F
Maximum permissible load of GPI output relay contact groups	30 V
Maximum permissible load of GPI output relay contact groups	0.5 A
GPI input threshold for GPI input signals	1.4 V
Number of USB connectors	1 pc
USB connector type	USB type B
AC mains supply voltage	100...240 V
Power consumption from AC mains, no more than	6 W
Operating temperature range	5...40 °C
Overall dimensions excluding connectors (W - H - D)	483...44 mm
Weight	1.08 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
