KR-101C - Active control panel for 10 GPI channels. Customisable button illumination logic. Level or pulse signals, dista

Standalone Communication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

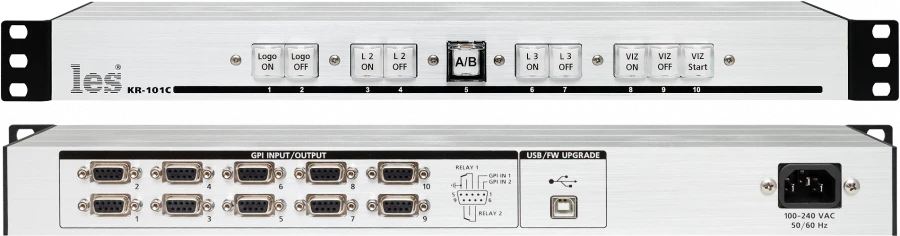

The console is designed to control external devices using GPI signals, it has 10 independent channels, each channel contains two outputs with switching relay pair and two GPI inputs, as well as the control button on the front panel. The channels can be combined into dependency groups. The logical state of the output signals is stored in non-volatile memory, when the power is switched off the relay pairs are disconnected, at the next switching on the state of the console is restored. LED backlighting of the buttons changes colour depending on the internal state of the output signals. The logic of colour change on the buttons can be programmed using a PC. The remote control is powered by 230 V AC mains. KR-101C has side corners for mounting in a telecoms rack. The warranty period is 24 months.

Technical Specifications

Number of channels	10 pc
Number of GPI outputs per channel	2 switching pairs
Number of GPI inputs per channel	2 pc
Type of connector for GPI signal	DB9F
Maximum permissible load of GPI output relay contact groups	30 V
Maximum permissible load of GPI output relay contact groups	0.5 A
GPI input threshold for GPI input signals	1.4 V
Remote control	Via USB from PC
USB connector type	type B
AC mains supply voltage 50/60 Hz	230 V
Power consumption from AC mains, no more than	10 W
Number of power supplies	1 pc
Power input connector	IEC 60320 C14
Operating temperature range	5...40 °C
Dimensions excluding connectors (W - H - D)	483...44 mm
Weight	1.36 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
