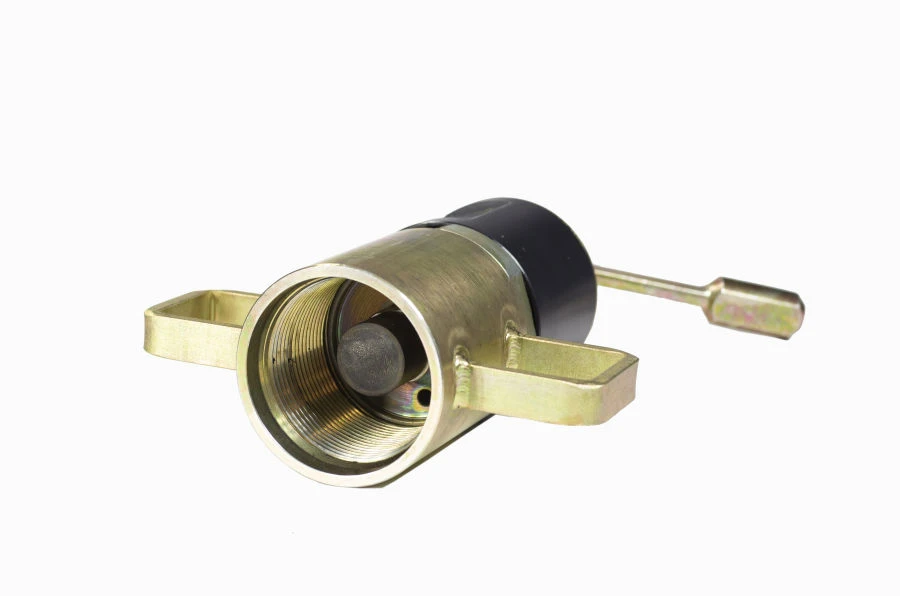

Level sensor "MGT PDU-1"

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The MGT PDU-1 level sensor is designed to control the liquid level in oil and gas producing wells by echolocation method, as well as the pressure in the annulus space. The sensor is installed on the measuring socket of the wellhead fitting and provides recording of the echo signal for a specified time.Inside the hermetically sealed housing there is an electronic module and a battery. The housing has a connector for connection of the charger. Indication of the main operating modes is carried out with the help of LED indicators located in the housing of the device. Communication with the sensor is carried out via Bluetooth LE radio channel.

Specifications

Product weight Less than 5 kg

Product life More than 5 years

Operating temperature range From -40 to +50 C

Method of establishing communication with the product NFC

Communication channel range More than 30 m

Sensor communication channel Bluetooth LE

Charge time of the built-in battery Less than or equal to 3 hrs.

Continuous product operation time in echogram recording mode More than 80h.

Pressure resolution 0.1 kgf/cm2

Controlled pressure range 0 to 100 kgf/cm2

Level resolution Less than or equal to 1 m

Range of monitored levels 20...6000 m

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
