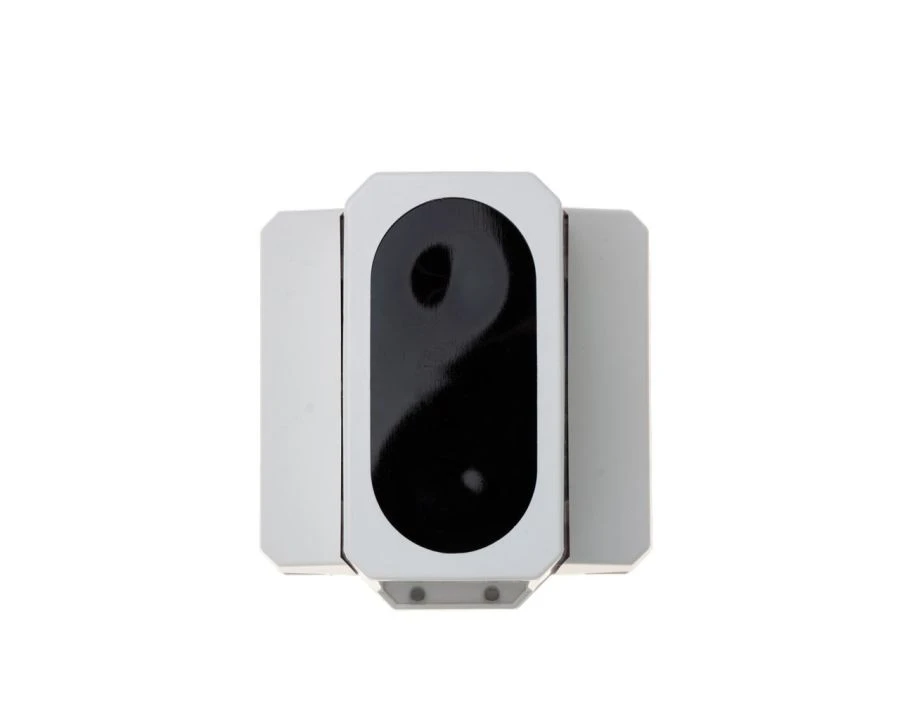

IP212-75SMD "IPDL-75SMD" linear optical-electronic smoke detector

Fire Alarm Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Linear smoke detector for the protection of premises of large area or length. Distinctive features of this modification: single-position design (transceiver + reflector-reflector); working distance from 8 to 60, to 80, to 100, to 120 metres; accurate screw alignment mechanism. IP212-75SMD - single-position linear fire detector, consisting of a transceiver and reflector-reflector. In the transceiver, the optical channels are separated and isolated in a two-chamber optical system. As a reflector-reflector in IP212-75SMD a highly effective cataphone (retroreflector) is used, which is able to fulfil its functions even if its surface is deflected relative to the optical beam by 10 - 15 degrees. On the sides of the transceiver housing under the mounting covers are located terminal blocks for external connections, software switch tactics detector and connection connector tester IPDL-75.

Technical Specifications

Range of possible distances between the transceiver and the reflector-reflector	8...120 m
Maximum possible width of the area to be protected by one detector	9 m
Maximum possible room area protected by one detector	1080
Detector supply voltage	10...30 V
Current consumed by the detector in the "Normal" mode, not more than	0.001 A
Current consumed by the detector in the "Attention" signaling mode, max.	0.01 A
Current consumed by the detector in the "Fire" signal generation mode, not more than	0.035 A
Current consumed by the detector in the "Fault" signaling mode, not more than	0.001 A
Current surge value at formation of the output signal "Attention"	0.005...0.006 A
Maximum possible duration of interruptions or polarity reversals of the supply voltage that do not affect normal operation	100
Minimum permissible power interruption interval frequency	4
Minimum required duration of power failure to ensure resetting of recorded notifications	2
Typical inertia of detector operation (for "Attention" and "Fire" signals)	5
Maximum inertia of detector actuation (by signals "Attention" and "Fire")	10
Inertia of "Fault" notification fixation in the "Fault - memory" mode	3...5
Inertia of "Fault" notification fixation in the "Fault - tolerance" mode	3...5
Inertia of "Fault" notification fixation in the "Fault - Beam" mode	6.5...7.5
Inertia of "Fault" notification fixation in the "Fault - excess" mode	40...60
Inertia of "Fault" notification fixation in the "Fault - Reduction" mode	40...60
Weight of the transceiver, not more than	0.42 kg
Weight of a standard reflector-reflector, not more than	0.45 kg
Weight of the reduced reflector-reflector, not more than	0.07 kg
Weight of the remote device UV-PPD-PRM, not more than	0.04 kg
Degree of protection of the shell according to GOST 14254, IP	54

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
