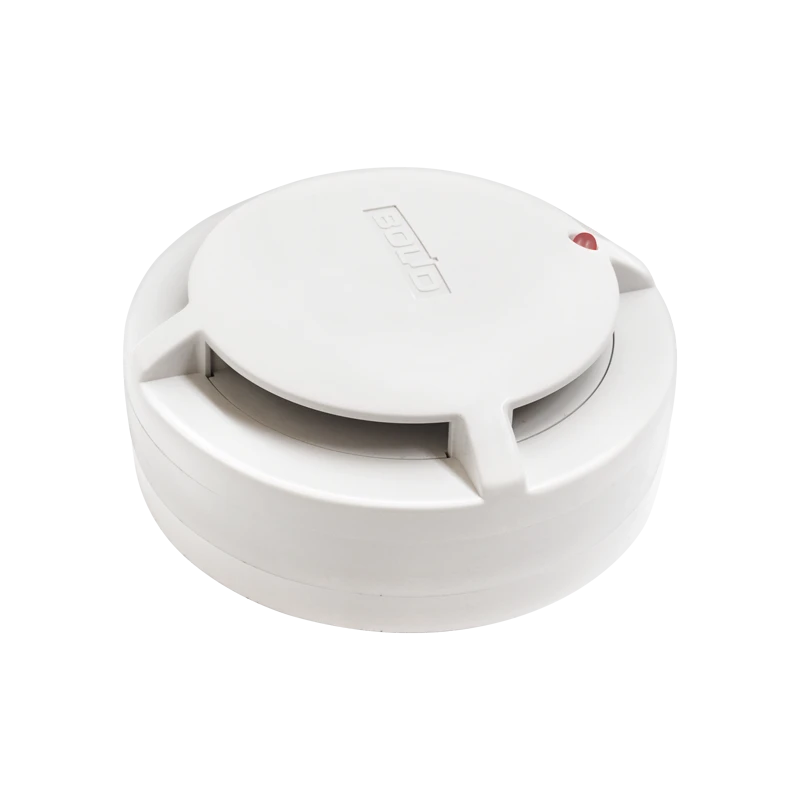

Fire smoke detector optical-electronic addressable analogue IP 212-34A "DIP-34A-05" ????.425232.002-05

Fire Alarm Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

It is used in fire alarm systems and is designed to detect fires accompanied by the appearance of smoke in closed rooms of various buildings and structures, by registering the optical radiation reflected from smoke particles and automatic formation of a fire signal. It is designed to work with controllers of two-wire communication line as part of the integrated security system "Orion". Information exchange and power supply is carried out via two-wire communication line. Has a built-in short-circuit isolator.

Specifications

Power supply voltage (DPLS) 8 to 11 V

Consumption current when the short-circuit isolator is triggered max 3.3 mA

Number of detectors to be connected in the DPLS up to 127 pcs

Maximum active resistance of DPLS wires Not more than 100 ohms

Minimum insulation resistance between DPLS wires Not less than 50 kOhm

Detector sensitivity 0.05 to 0.2 dB/m

Protection degree of the shell according to GOST 14254-2015 IP41

Operating temperature range -30 to +55 °C

Overall dimensions of the device diameter: 100mm; height: 47mm

Instrument weight max. 0.2 kg

Average lifetime of the device 10 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
