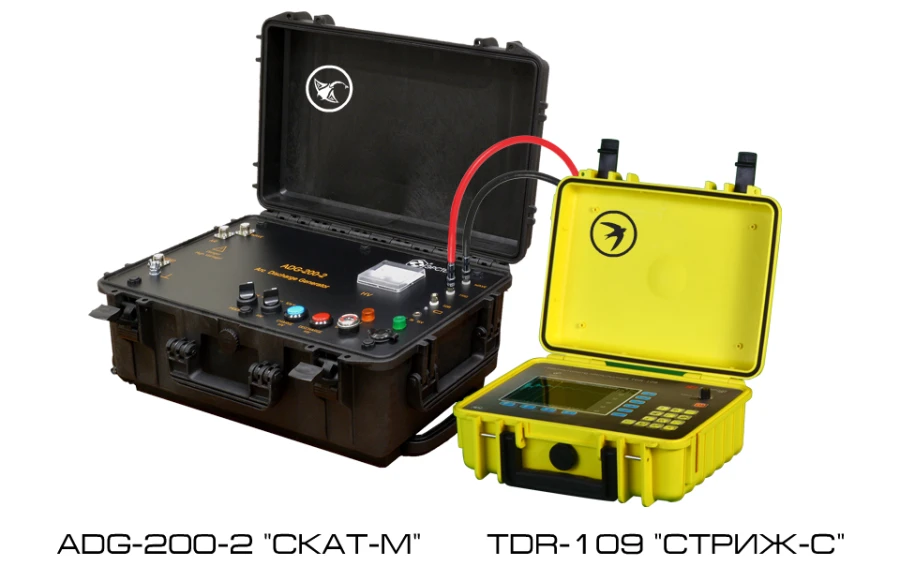

TDR-109 STRIZH-S Remote Localization Kit + ADG-200-2 SKAT-M

TDR-109 STRIZH-S Remote Localization Kit + ADG-200-2 SKAT-M

Brand: ERSTED

$3,000 - $9,600 USD

MOQ: 1 sets

Key Features

Range of distance measurement on TDR 109: 0 to 128000 m (0 to 1280 µs).

Output voltage range of the ADG-200-2 generator: 0 to 10 kV

Dimensions on ADG-200-2: 570x350x200 mm

Operating temperature range at ADG-200-2: From -20 C to +40 C .

Supplier Information

ERSTED OJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from ERSTED

Remote Localization System RИ-407 STRIJ-S + ADG-200-2 SKAT-M

$12,000-$36,000

Pulse Reflectometer RI-407 "STRIZH-S" - Protected Model

$1,500-$4,800

Portable Reflectometer Tester RI 303BM "STRIZH

$450-$1,200

TDR-107 Stриж-S Remote Localization Kit + ADG-200-2 Skat-M

$4,800-$15,000

Transition Device UP-1 for Galvanic Isolation

$18-$60

Protected Impulse Reflectometer-Bridge RI 10M2 "STRIZH

$900-$3,000

Description

Purpose of the set: Realisation of modern methods of WMD in a small-sized complex with autonomous power supply. Preliminary localisation of both low-resistance and high-resistance damages by the following flameless methods of WMD: pulse method (method of pulse reflectometry, TDR) pulse-arc method (method of reflection from short-term electric arc, ARM) method of oscillating discharge by current (wave by current, ICE).

Specifications

Range of distance measurement on TDR 109

0 to 128000 m (0 to 1280 µs).

Output voltage range of the ADG-200-2 generator

0 to 10 kV

Dimensions on ADG-200-2

570x350x200 mm

Operating temperature range at ADG-200-2

From -20 C to +40 C .

Maximum permissible pulse voltages on all low-voltage connectors intended for connection to the OTDR, not to

On TDR connector - 60V;on WAVE connector - 120V;on TRIG connector - 20V.

Overall dimensions for TDR-109.

270x246x124 mm

Capacity of non-volatile memory for OTDR-109.

Not less than 1000 reflectograms.

Setting range of shortening factor on TDR-109.

From 1.000 to 3.000, in increments of 0.001.

Range of matched resistances on TDR-109

From 25 ohms to 500 ohms.

Distance measurement error on TDR-109

0.01% to 0.2% of the subrange from 12.5 cm to 8 m at CG=1.500.

Display on TDR 109

Colour TFT 5,7 (640x480 pixels)

TDR 109 measurement modes

Pulsed (TDR);pulse-arc (ARM);current waves(ICE);voltage waves (Decay).
