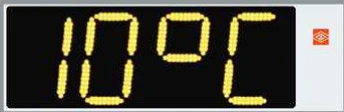

Information board T44

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

T44 digital information boards are designed to measure and display any electrical and physical quantities (for example: AC or DC current, voltage, pressure, temperature, frequency, etc.), as well as values received in digital form via RS485 interface under control of Modbus RTU protocol. Advantages: maximum parameter display range from minus 1999 to plus 9999;
change of operating mode settings by remote control or via RS485 interface;
brightness control (12 brightness levels);
setting min and max settings;
programming of input signal parameters, change of display scale;
formation of discrete signal for control of switching equipment.

Specifications

Overall dimensions, mm 420x130x40

Weight, kg, not more 1,2

Parameter display Measured value of input signals (any electrical and physical quantities); information received via RS485 interface; temperature value (optional)

Input signal Direct current and voltage: 60 mV; 75 mV; 100 mV; -75...0...75 mV; 5 V; 10 V; 20 V; 50 V; 100 V; 200 V; 250 V; 500 V; 2 mA; 5 mA; 10 mA; 20 mA; 4...20 mA; -5...0...5 mA; AC current and voltage: 100 mV 5 V; 10 V; 20 V; 50 V; 100 V; 200 V; 250 V; 380

Maximum reading range -1999 to +9999

Conversion time 0,5 ?

Basic error limits ± 0,5 %

Galvanic isolation of input and output circuits, power supply circuits Got it

RS485 communication interface Quantity: 1; Modbus RTU protocol

Discrete outputs Quantity: 1 DC voltage 300V, 100mA or AC voltage 200V, 100mA

Power supply voltage 220VU - from 85 to 253 V AC with frequency (50 ± 0,5) Hz or from 120 to 265 V DC; 24VN - from 18 to 36 V DC.

Power consumption from the power supply circuit, not more 15 V-A

Reprogramming By remote control; via RS485 interface

Operating temperature range From +5 to + 50 °C

Degree of protection IP50

Average service life, at least 10 years

Average MTBF, not less than 50000 ?

Height of the indicator sign 100 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
