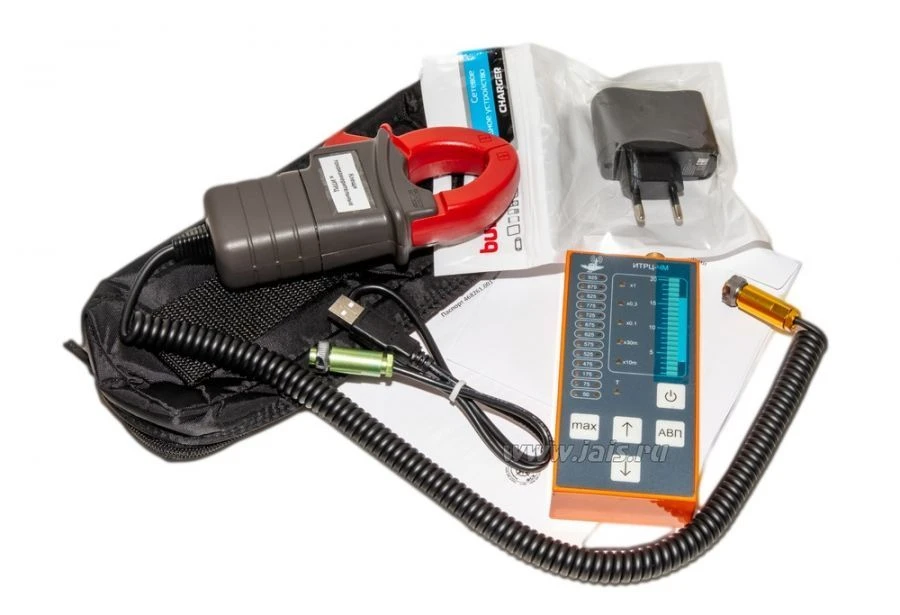

Indicators, rail current meters ITRC-CHM

Electrical Recording Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

It is used for operative determination of causes of disturbance of normal operation of rail circuits (rail connectors of jumpers, wires) on the railway

Specifications

Control of the duration of the first interval of code signals "Zh", "Z" of automatic locomotive signalling ALSN 0.1...0.2

Control of alternating current in 50 Hz rail jumpers by means of current clamps 0.2...20 A

Power is supplied by a built-in DC power supply using a lithium polymer battery pack 3.7 V

Continuous operation time of the indicator without recharging from a fully charged battery in normal conditions eq. B1/B8 2100/900 MHz

Operation at relative humidity at 25 °C, up to 98 %

Operation at ambient air temperature -30...40 °C

Average service life, at least 8 a

Weight, not more 0.6 kg

Overall dimensions, not more 130x60x30 mm

Range of signalling currents in the rail line at input signal frequency 50, 75, 175 Hz 0.2...20 A

Range of signal currents in the rail line at input signal frequency 475, 525, 575, 625, 675, 725, 775, 825, 875, 925 Hz 0.02...2 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
