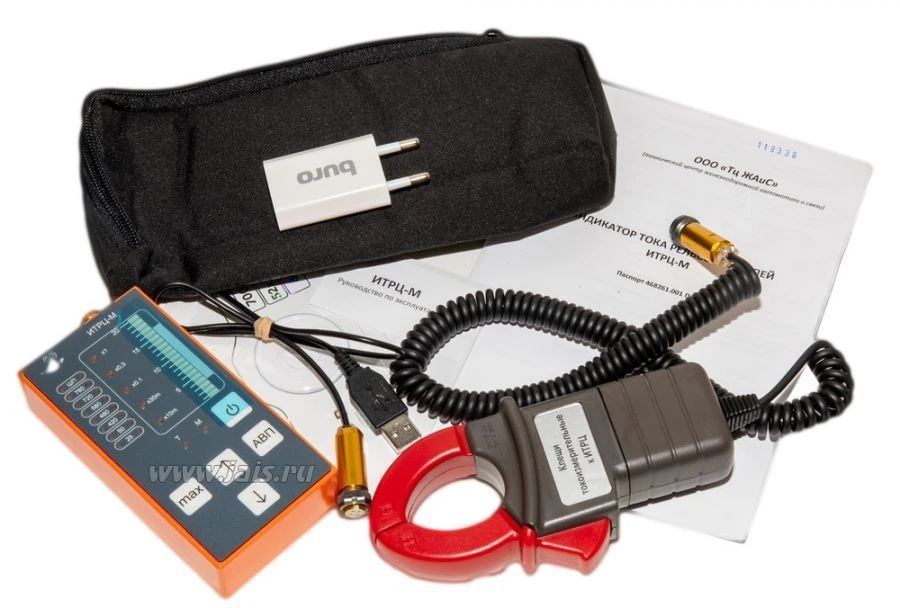

Indicators, rail circuit current meters ITRC-M

Electrical Recording Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

It is used for operative determination of causes of disturbance of normal operation of rail circuits (rail connectors of jumpers, wires) on the railway

Specifications

Control of the duration of the first interval of ALSN "G" and "Z" code signals 0.1...0.2

Operation at ambient temperature -30...40 °C

Operation at relative humidity at 25 °C 98 %

Power is supplied by a built-in DC power supply using a lithium polymer battery pack 3.7 V

Continuous operation time of the indicator without recharging from a fully charged battery in normal conditions eq. B1/B8 2100/900 MHz

Weight, not more 0.6 kg

Overall dimensions, not more 130x60x30 mm

Range of signalling currents in the rail line at input signal frequency 25, 50 Hz 0.2...20 A

Range of signalling currents in the rail line at input signal frequency 420, 480, 580, 720, 780, 4545-5555 Hz 0.02...2 A

Control of rail magnetization with fixation of maximum values of induction and permanent magnetic field on the rail surface in the range from 0.2 to 20 with subdivision into subranges: 2.6 and 20
