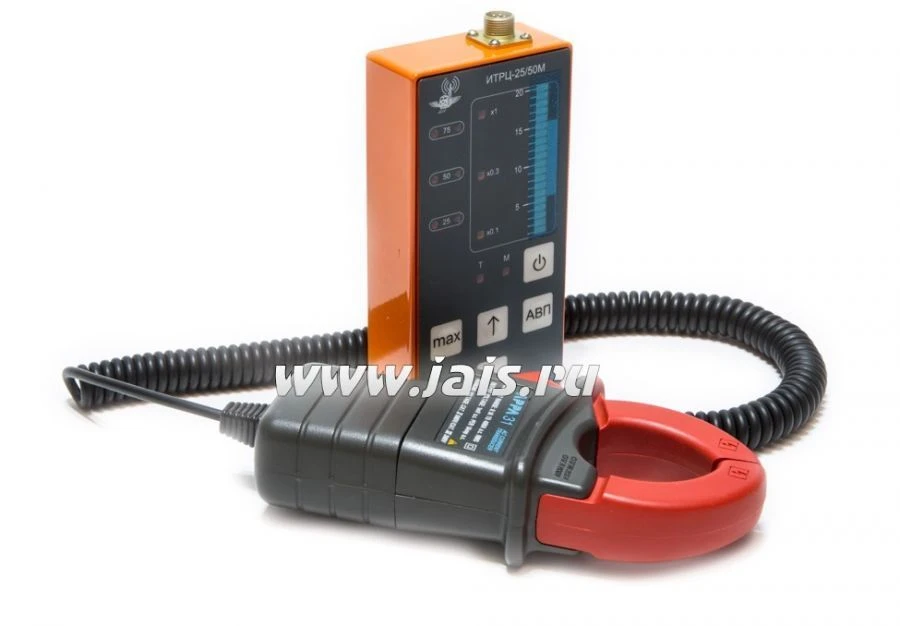

Indicators, rail circuits current meters ITRC-25/50M

Electrical Recording Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

It is used for operative determination of causes of disturbance of normal operation of rail circuits (rail connectors of jumpers, wires) on the railway

Specifications

Control of rail magnetization with fixation of maximum values of induction and permanent magnetic field on the rail surface 2...20

Control of the duration of the first interval of ALSN "G" and "Z" code signals 60...240

Operation at ambient temperature -30...40 °C

Operation at relative humidity at 25 °C, up to 98 %

Power from the on-board DC source, which is a lithium-polymer battery with a voltage of 3.7 V

Continuous operation time of the indicator without recharging from a fully charged battery in normal conditions, n B1/B8 2100/900 MHz

Weight, not more 0.3 kg

Overall dimensions, not more 120x70x30 mm

Range of signalling currents in rail line with input signal frequency 25, 50, 75 Hz 0.1...20 A
