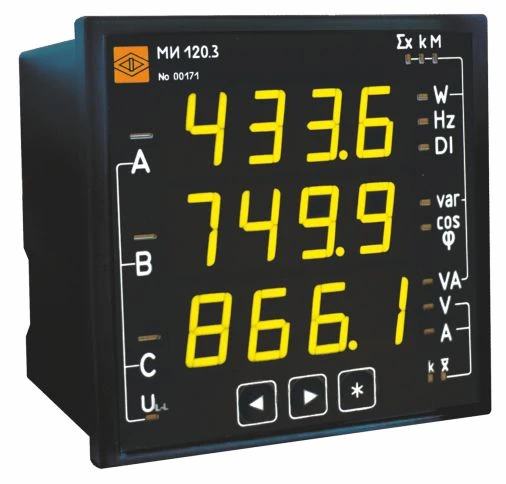

Indicating modules MI120.3

Electrical Measuring Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

MI120.3 display modules are designed to display measurement results of digital measuring devices, converters and can be used at power stations, substations and distribution points of generating, grid energy companies and industrial enterprises. Several modules can be connected to one measuring instrument or converter. One measuring instrument or converter can be connected to one MI120.3. Displayed parameters: all basic electrical parameters of digital instruments and converters.

Specifications

Overall dimensions, mm 120x120x78 (without protective cover), 120x120x102,1 (with protective cover)

Weight, kg, not more 0,4

Displayed parameters Effective value of phase voltage, Effective value of phase-to-phase voltage, Average effective value of phase-to-phase voltage, Effective value of phase current Average effective value of phase current, Active power of load phase, Sum of

Indication 3 blocks of seven-segment indicators (4 indicators per block); sign height: 20 mm

RS485 communication interface Quantity: 1; Modbus RTU protocol

Power supply voltage 5VH - (5+4/-0.5) VDC; 12VH - (12+6/-3) VDC; 24VH - (24+12/-6) VDC; 220VU - universal supply: supply voltage from 85 to 253 VAC 50 Hz or 120 to 265 VDC

Power consumption from the power supply circuit, not more 4 V?A

Reprogramming Via "Configurator" program (RS485 interface); via front panel buttons

Operating temperature range -40... +70 °C (relative humidity 95% at +35 °C)

Degree of protection IP40

Mounting In the shield

Warranty period of operation 24 mos.

Average service life, at least 25 years

Average MTBF 200000 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
