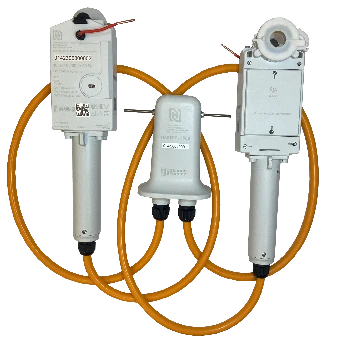

High-voltage smart metering device NARTIS-I500-K1B1-A5SR1-6KV

Electricity Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

High-voltage intellectual electricity metering device NARTIS-I500-K1B1-A5SR1-10KV

Description

The NARTIS-I500 (VIPUE) high-voltage intelligent power metering devices are designed to measure active and reactive electrical energy in forward and reverse directions, as well as to measure active, reactive and total power, line voltages, phase currents, network frequency, specific energy losses in current circuits, forward and reverse sequence current, reverse sequence current asymmetry coefficient, reactive power coefficient tg, power coefficient cos in three-phase three-wire electrical networks of the first phase VIPUE are designed for indoor or outdoor operation. Communication interfaces: opto-port, RS-485, RF, GSM/GPRS/NB-IoT/LTE, Bluetooth, USB Type-C.

Specifications

Number of phases 3

Maximum current 100 A

Minimum operating temperature -45 °C

Type Multi-tariff

Accuracy class 0,5S

Maximum operating temperature 70 °C

Nominal phase voltage 6kV

Base current 10 A

Protection class IP65

Type, kind Multi-tariff

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Connection type Opto-port, RS-485, RF, GSM/GPRS/NB-IoT/LTE, Bluetooth, USB Type-C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
