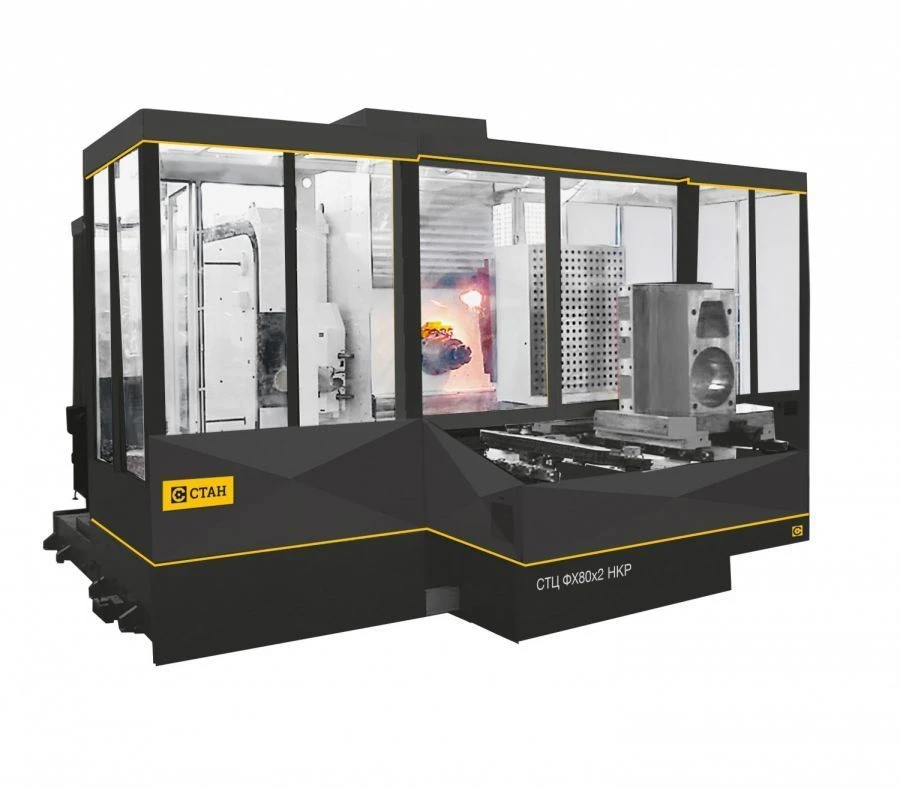

High-Speed Horizontal Machining Center STC N 80x2C for Complex Parts Processing
Manufacturer:
ISZ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
High-speed horizontal milling machining centre model STC H 80x2C (SUPER CENTRE IS800) is designed for complex machining of particularly complex body parts made of aluminium, cast iron, steel and magnesium alloys.
The machine can perform operations of drilling, countersinking, reaming, boring of precise holes on precise coordinates, milling of planes and grooves, milling of precise holes with milling cutters, threading with taps, cutters and milling cutters, machining of shaped surfaces with simultaneous control on four coordinates, work with measuring heads.
The machine can perform operations of drilling, countersinking, reaming, boring of precise holes on precise coordinates, milling of planes and grooves, milling of precise holes with milling cutters, threading with taps, cutters and milling cutters, machining of shaped surfaces with simultaneous control on four coordinates, work with measuring heads.
Specifications
Type of product according to PP RF 616
Vertical machining centers 3-axis 4-axis)
Length
6500 mm
Width
4950 mm
Height
4300 mm
Machine type
Machining centre STC H 80x2C
Maximum programmable movements, mm:
x-axis (column transversely) 1,200 - y-axis (spindle headstock vertically) 1,000 - z-axis (table longitudinally) 1,200 mm
Machine weight
22000 kg
Coolant supply via spindle (5 MPa pressure)
20 l/min l
Coolant supply for chip flushing,
100 l/min l
Coolant supply via nozzles on the spindle headstock
l/min 100 l
Maximum tool length
500 mm
Maximum tool diameter
250 mm
Tool magazine capacity
SBVVBG pcs
Maximum feed force in X/Y (down)/Y (up)/Z axes
kn 8 / 8 / 6 / 8
Speed of fast movements in X, Y, Z axes
m/min 40
Maximum spindle/spindle motor torque
700/ 300*
Maximum table torque in the B axis
nm 1,000
Working feed rate limits of the rotary table in the B axis
deg/min 1 .... 10800 °C
Table load capacity
1000 kg
Maximum size of workpiece to be mounted D x H
1 000 ? 1 000 mm
Time of change of satellite tables
15
Number of satellite tables
2 pcs
Size of the work surface of the companion table
800x800 mm
Maximum spindle/motor-spindle speed, rpm
6000/8000 -12000*
Working feed rate limits in X, Y, Z axes,
mm/min 1 .... 40 000 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
